新 MULTICUT 800 在 巴特武尔察赫, 巴登-符腾堡州, 德国
新
Doubleclick to zoom in
请联系卖家咨询
更多照片和设备细节。
规格参数
- 新旧状况
- 新
- Cutting depth max.
- 515 mm
- Cutting depth adjustment
- electro-hydraulic, stepless

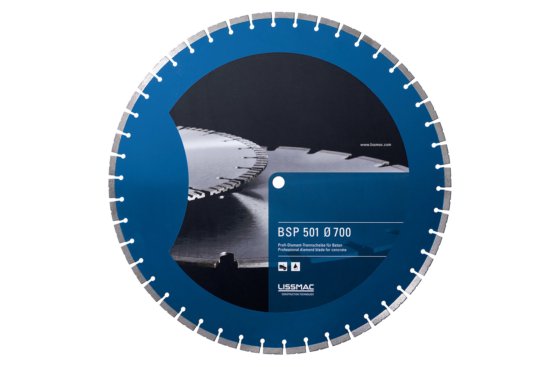

- Saw blade dia. max.
- 1200 mm
- Saw blade holder
- 35 mm (6xM12 - TK 120 mm)
- Forward drive
- Hydrostat infinitely variable 0-60 m/min
- Reverse drive
- Hydrostat infinitely variable 0-60 m/min
- Drive motor
- Kubota turbo diesel 4-cylinder
- Cooling
- watercooled
- Max. output power
- 44 kW/ 60 hp
- Saw blade speed
- 1550 / 970 1/min
- Saw blade speed optional
- 2500 / 1550 1/min
- Saw blade drive
- V-belt drive
- Dimensions (l/w/h)
- 1680/1050/1360 mm
- Mass
- 1070 kg
- 产品编号
- 77555942
描述
Select your country below so we can show you the correct information for your location.

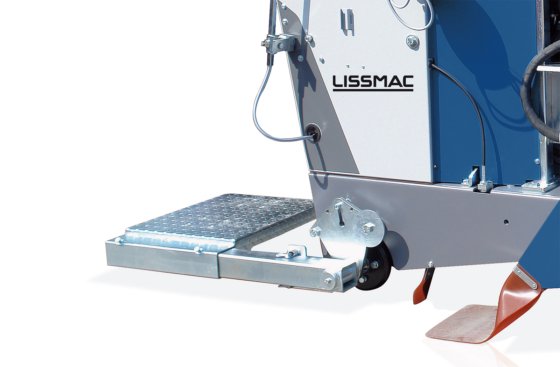

Torsion-resistant frame structure with low center of gravity
High tracking stability thanks to consistently long wheelbase
Thanks to the smooth-running axle steering, the floor saw can be moved and set up quickly and easily without physical strain. Cutting corrections can also be carried out without effort
Smooth-running, water-cooled KUBOTA 4-cylinder turbo diesel engine
Large V-belt drive
A quick and easy V-belt change enables conversion to a second speed. Change to other speeds by removing/installing the saw blade shaft
The large-dimensioned saw blade shaft bearing with special seal guarantees a long service life
The air intake is on the operator's side, which means that only clean, cool fresh air is drawn in.
Sensitive feed due to hydrostat and maintenance-free gearbox (without chain)
