新 MULTICUT 605 在 巴特武尔察赫, 巴登-符腾堡州, 德国
新
Doubleclick to zoom in
请联系卖家咨询
更多照片和设备细节。
规格参数
- 新旧状况
- 新
- Cutting depth max.
- 515 mm
- Cutting depth adjustment
- electro-hydraulic/stepless
- Saw blade dia. max.
- 1200 mm
- Saw blade holder
- 35 mm (6 x M12 - TK120) - 25.4 mm optional
- Drive motor
- HATZ Diesel 4-cylinder
- Max. output power
- 55 kW / 74.8 hp
- Emission level
- Stage 5 (incl. diesel particulate filter)
- Forward cut
- hydrostatic stepless 0-50 m/min
- Cutting backwards
- hydrostatic stepless 0-25 m/min
- Saw blade speed
- 950 / 1620 / 2450 1/min
- Left/right cut
- Yes
- Dimensions (l/w/h)
- 1995/1030/1720 mm
- Mass
- 1070 kg
- 产品编号
- 77555941
描述
Select your country below so we can show you the correct information for your location.
Powerful floor cutter with scissor principle

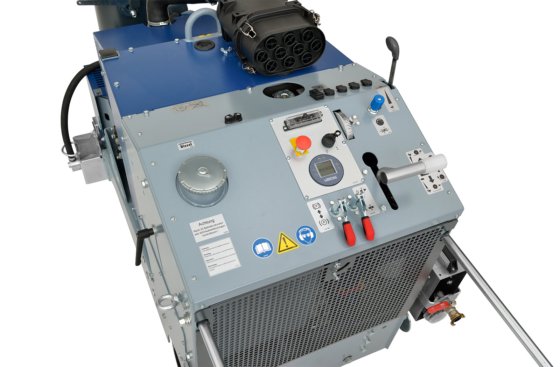

Simple arrangement of the operating elements and a compact multifunction display allow intuitive operation that is easy to learn
Drive via robust hydrostat, which ensures smooth, controlled machine guidance
Optimum power transmission thanks to high-performance V-belts
Shiftable transmission with speeds of 950, 1620 and 2450 rpm, transmission with left/right rotation and neutral position, flange spraying
Torsion-resistant sheet metal frame construction
The compact design and balanced chassis allow easy maneuvering on the construction site
The low center of gravity ensures an exact saw cut
Very good straight cut due to adjustable rear axle
Rear axle and front axle on the same track - large wheels
The saw blade can be raised and lowered electrohydraulically
