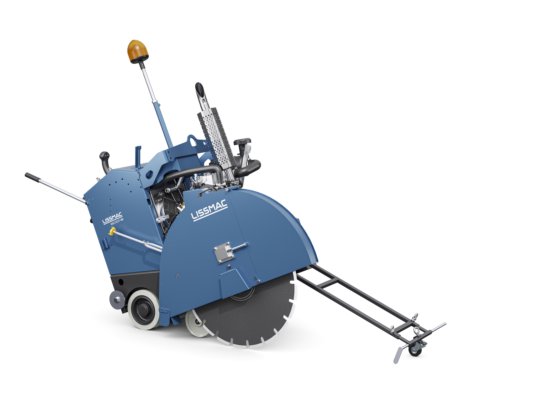

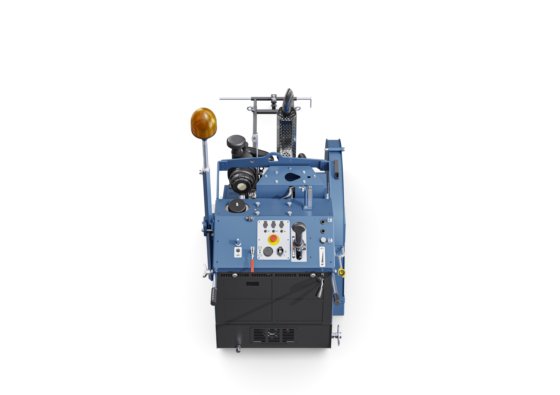

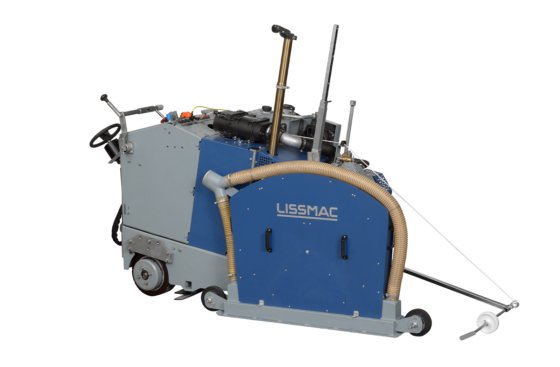

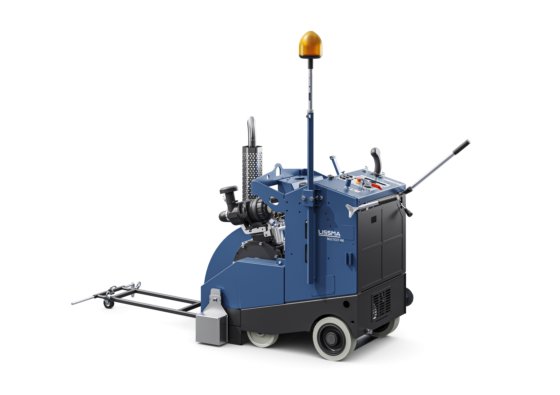

新 MULTICUT 400 D 在 巴特武尔察赫, 巴登-符腾堡州, 德国
新
Doubleclick to zoom in
请联系卖家咨询
更多照片和设备细节。
规格参数
- 新旧状况
- 新
- Cutting depth standard / max.
- 315 mm / 415 mm
- Cutting depth adjustment
- electrohyd. with depth indicator
- Saw blade diameter standard / max.
- 800 mm / 1000 mm
- Saw blade holder
- 25,4 mm
- Drive motor
- Perkins Diesel 3-cylinder
- Max. output power
- 18.4 kW / 25 hp
- Emission level
- Level 5
- Nominal speed / load speed fresh concrete
- 3040 rpm / 2800 rpm.
- Rated speed / load speed ø600-800
- 1621 rpm / 1493 rpm.
- Rated speed / load speed ø800-1000
- 1351 rpm / 1244 rpm.
- Left/right cut
- Yes
- Dimensions (l/w/h)
- 1300/850/1350 mm
- Mass
- 458 kg
- 产品编号
- 77555926
描述
Select your country below so we can show you the correct information for your location.
Compact floor saws with scissor principle
Drive via robust hydrostat, which ensures smooth, controlled machine guidance
Optimum power transmission thanks to robust high-performance V-belts
Torsion-resistant sheet metal frame construction
The compact design and balanced chassis allow easy maneuvering on the construction site
The low center of gravity ensures an exact saw cut
Very good straight cut due to adjustable rear axle
The saw blade is lowered and raised electro-hydraulically with a cutting depth indicator to prevent damage to the saw blade
The height-adjustable handles allow ergonomic operation of the device
The saw blade hood can be folded up at the front as standard for overcuts
Very quick conversion from left to right cutting
