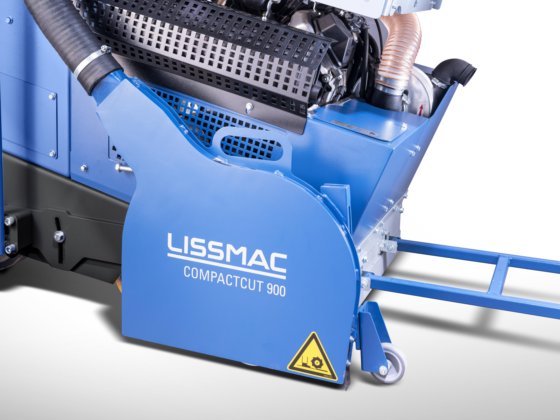

新 COMPACTCUT 900 P/T 在 巴特武尔察赫, 巴登-符腾堡州, 德国
新
Doubleclick to zoom in
请联系卖家咨询
更多照片和设备细节。
规格参数
- 新旧状况
- 新
- Cutting depth max.
- 100 mm
- Cutting depth adjustment
- Electro-hydraulic with depth indicator
- Saw blade dia. max.
- 350 mm
- Saw blade holder
- 25,4 mm
- Saw blade mounting (flush cut)
- 6 x M8 - TK125 and 6 x M6 TK - 92 mm
- Drive motor
- Kohler ECH 940 Gasoline
- Max. output power
- 26 kW, 35 hp
- Saw blade speed
- 2670 1/min
- Dimensions (l/w/h )
- 1600/800/1570 mm
- Mass
- 621 kg
- 产品编号
- 77555925
描述
Select your country below so we can show you the correct information for your location.
Creation of joints such as connection and expansion joints using the dry cutting method
No vacuuming and no cost-intensive disposal of cutting sludge
No need for water, no contamination of the surface - ready-to-pour joint without any further work step
Ideal for fast joint creation or renovation work and tight construction sites
With specially developed extraction hood for joints flush with walls and kerbs as standard
Joints flush with walls and kerbs are created by cutting vertically, as described and required in the ZTV Fug.
The saw blade is lowered and raised electro-hydraulically with a cutting depth indicator to prevent damage to the saw blade
Drive via robust hydrostat, which ensures smooth, controlled machine guidance
