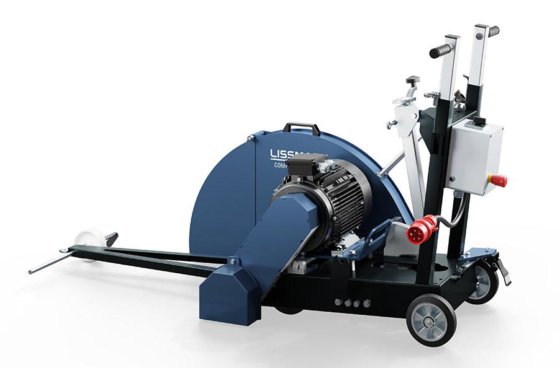

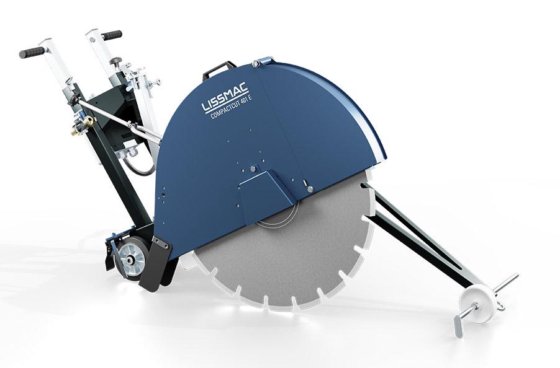

新 COMPACTCUT 401 E 在 巴特武尔察赫, 巴登-符腾堡州, 德国
新
Doubleclick to zoom in
请联系卖家咨询
更多照片和设备细节。
规格参数
- 新旧状况
- 新
- Cutting depth max.
- 320 mm
- Cutting depth adjustment
- Handwheel threaded spindle
- Saw blade dia. max.
- 800 mm
- Saw blade holder
- 25.4 mm (6 x M8 - TK125)
- Drive motor
- electric motor
- Max. output power
- 7.5 kW / 400 V / 32 A
- Saw blade speed
- 1250 1/min
- Left/right cut
- Yes
- Dimensions (l/w/h)
- 990 / 580 / 850 mm
- Mass
- 156 kg
- 产品编号
- 77555907
描述
Select your country below so we can show you the correct information for your location.
The LISSMAC electric floor saws work quietly and are therefore particularly suitable for cutting work on and in buildings
The saw blade is lowered and raised steplessly via a threaded spindle, thus preventing damage to the saw blade
Optimum speed of the saw blade shaft
Saw hood can be folded up at the front as standard for overcuts
Excellent directional stability due to optimum center of gravity of the machine to the blade
Height-adjustable and variably pluggable handles for ergonomic working
Can be easily converted from left-hand to right-hand cutting in a few simple steps
Fork spraying directly through the hood
Optimum weight distribution on the front wheels ensures high tracking and sawing accuracy
Adjustable cutting depth indicator
Stable H-shaped dipstick
Continuous saw blade shaft with V-belt drive
Saw blade lift via low-maintenance rocker design
