二手 Keysight Technologies E36312A 在 哈罗, 英格兰, 英国
二手
Doubleclick to zoom in
请联系卖家咨询
更多照片和设备细节。
规格参数
- 新旧状况
- 二手
- Maximum voltage
- 25V
- Channel/port count
- 3
- Feature
- Parameter
- Output rating (80 w)
- Output 1: 0 to 6 V, 0 to 5 A Output 2: 0 to 25 V, 0 to 1 A Output 3: 0 to 25 V, 0 to 1 A
- Programming accuracy ±(% of output + offset)
- Voltage: 0.03% + 2 mV, 0.03% + 5 mV, 0.03% + 5 mV Current: 0.04% + 3 mA, 0.04% + 2 mA, 0.04% + 2 mA
- Ripple & noise (20 hz to 20 mhz)
- Normal Mode Voltage: ＜350 µVrms/ 2 mV p-p, ＜350 µV rms/2 mV p-p, ＜350 µV rms/2 mV p-p Normal-mode current: ＜2 mA rms, ＜1 mA rms, ＜500 µA rms
- Readback accuracy ±(% of output + offset)
- Voltage: 0.04% + 2 mV, 0.04% + 5 mV, 0.04% + 5 mV Current: 0.04% + 3 mA, 0.04% + 3 mA, 0.04% + 3 mA Low Range Current, 20 mA: 0.25% + 80 uA
- E36311a
- 80 W DC power supply, triple-output, 6 V, 5 A and ±25 V, 1 A, USB
- E36312a
- 80 W DC power supply, triple-output, 6 V, 5 A and 2 x 25 V, 1 A, LAN, USB
- E36313a
- 160 W DC power supply, triple-output, 6 V, 10 A and 2 x 25 V, 2 A, LAN, USB
- 0e3
- 230 VAC ±10%
- 0em
- 115 VAC ±10%
- 0e9
- 100 VAC ±10%
- Rbp
- Recessed binding posts, not upgradable
- Gpb
- GPIB module
- Uk6
- Commercial calibration with test result data
- Sec
- NISPOM and file security
- Bv0003b
- Power Supply Control & Automation
- 产品编号
- 76636781
描述
DC Power Supply; Triple Output, with LAN, USB, 6V / 5A, 25V / 1A, 25V / 1A, 80W

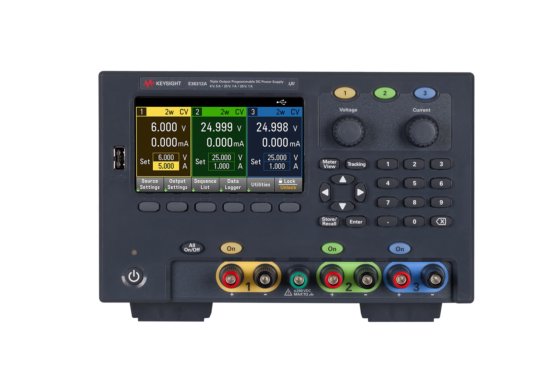

The Keysight E36312A is a programmable 80 watt-triple output DC power supply with LAN and USB interfaces. GPIB interface is available as an option
The E36300 Series triple output power supply is ready for your bench application. With low output ripple/noise and accurate voltage/current measurements, you can test with confidence. Power multiple voltage buses with clean, reliable power, view voltage and current on all outputs simultaneously. You have access to advanced features such as data logging, output sequencing, list mode, and output coupling.
The E36312A is an 80 W model that offers the complete feature set. Channel 2 and 3 are electrically isolated independent channels. Some of the key extended features include; USB, LAN and optional GPIB interface, 2 or 4-wire sensing, data logging, output sequencing, list mode, and auto parallel/serial.
