新 DRV-200 在 东京都, 日本
新
Doubleclick to zoom in
请联系卖家咨询
更多照片和设备细节。
规格参数
- 新旧状况
- 新
- External dimensions (w × d × h)
- 1090 mm × 800 mm × 1,250 mm Bottle inlet height: 1,170 mm
- Net weight
- Approx. 260 kg
- Storage capacity (based on 500 ml pet bottle size)
- Approx. 700 bottles (Approx. 350 bottles per side)
- Collection bin size
- 455 mm (W) x 775 mm (D) × 535 mm (H) (x 2)
- Collection bag size
- 1,200 mm (W) x 1,500 mm (H) 0.05 mm or greater thickness recommended
- Bottle cap collection bag size
- 300 mm (W) x 530 mm (H) x 140 mm (D)
- Power supply voltage/power consumption
- Single phase 100 V / 1.1 kW
- Power supply connector
- Flat blade two-pole plug with grounding prong 125 V 15 A rating
- Operating environment (temperature/humidity)
- 5 to 35 ℃ 80% RH (max) (non-condensing)
- Volume reduction method
- Compaction with pre-cutting
- Processing speed
- Approx. 15 bottles/min (approx. 13 bottles/min when camera function used)
- Compatible bottle types
- PET plastic beverage bottles
- Compatible bottle sizes
- φ45 x 116 mm (150 ml) to φ110 (90 mm (D) x 110 mm (W) x 310 mm (2 L) (Standard sizes)
- Bottle feeding method
- Tap on touch panel or use of readers Card reader: contactless NFC
- Operating noise level
- Max. 68.7 dB (63 dB during normal operation)
- Bottle material recognition
- Decision using combination of the camera and all sensor inputs
- Display
- 7.0 inch TFT color display
- Touch panel
- Capacitive touch panel
- Communications
- 4G mobile router
- 子类别
- 回收机
- 产品编号
- 73224349
描述
感谢您访问我们的网站。现在，我们仅能用英语提供本信息。我们正在不断努力用中文提供更多的内容。感谢您耐心等待！

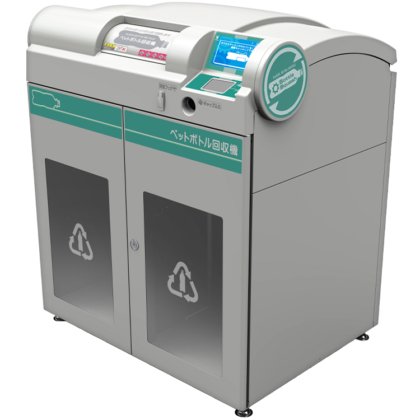

Large-capacity reverse vending machine that's simple and easy to use for anyone. It provides increased storage capacity, enhances operability, and preserves the quality of the plastic as a recyclable resource.
DRV-200
零售业
主要功能
With a track record of approx. 2,500* reverse vending machine installations across Japan, DIGI has added DRV-200 to its lineupーa large-capacity model that holds 2.5 times more bottles than its predecessor. With a universal design that even children can use and enjoy, it provides greater convenience for consumers while improving operability for store staff. By collecting plastic bottles as a high-quality recyclable resource, DRV-200 provides a practical solution toward a circular economy.
