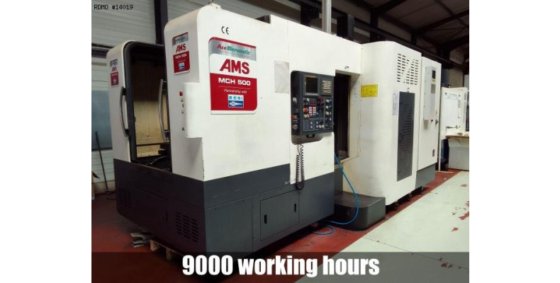

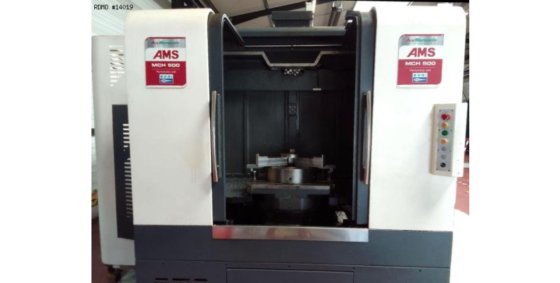

二手 Ams MCH-5004 轴数 在 Contamine-sur-Arve, 奥弗涅-罗讷-阿尔卑斯, 法国
二手
Doubleclick to zoom in
请联系卖家咨询
更多照片和设备细节。
规格参数
- 新旧状况
- 二手
- 年份
- 2013
- 序列号
- M04-013
- 库存编号
- 14019
- 品牌：
- Ams
- 型号：
- MCH-500
- 出厂时间：
- 2013
- 序列号：
- M04-013
- Number of axes
- 4
- Tool holder type
- HSK63
- Spindle power
- 22 / 26 [kW]
- Spindle speeds
- 100 - 10.000 [rpm]
- Travels on x/y/z axes
- 800 x 600 x 800 [mm]
- Rapid traverses rates (x/y/z)
- 40 [m/min]
- Travel
- 360 [°]
- Indexing precision
- 0,001 [°]
- Rapid traverse rate
- 13,88 [rpm]

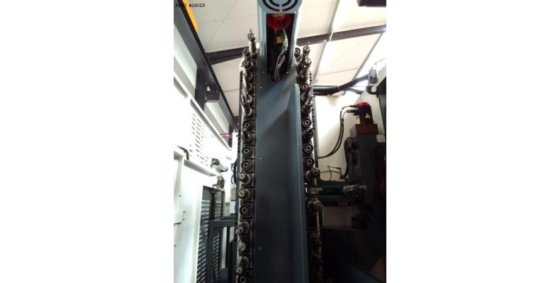

- Auto. tool changer type
- arm type
- Tool magazine capacity
- 60
- Tool exchange time
- 2,2 [sec]

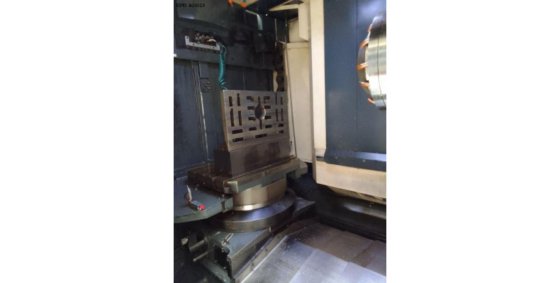

- Pallet changing device type
- Rotopallet
- Pallet size
- 630 x 500 [mm]
- Pallets number
- 2
- Maximum weight upon pallet
- 900 [kg]
- Maximum workpiece diameter
- 740 [mm]
- Maximum workpiece height
- 550 [mm]
- Supply voltage
- 400 [V]
- Total installed power
- 56 [kVA]
- Machine floor space
- 5.244 x 3.305 [mm]
- Machine height
- 3.345 [mm]
- Machine weight
- 10.000 [kg]

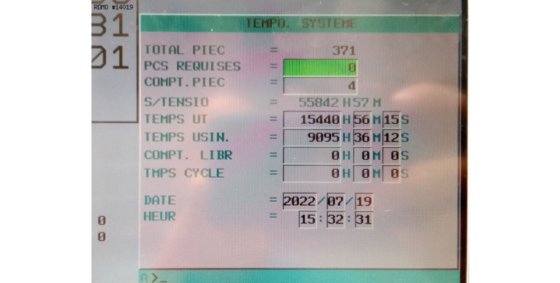

- Number of working hours
- 9.095 [h]

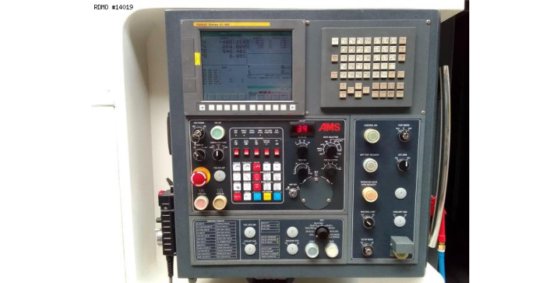

- Cnc
- Fanuc 0i-MD
- Interface
- Ethernet / RS232 / USB / PCMCIA
- Interactive programming
- Manual guide
- Linear scales
- X x Y x Z

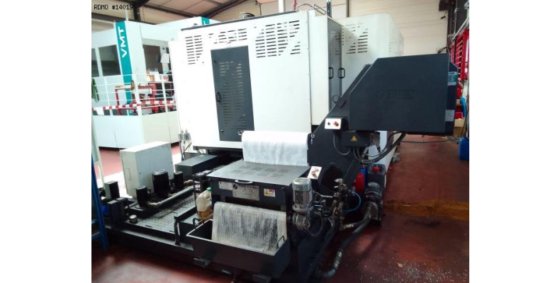

- Coolant tank
- 700 [l]
- * with high-pressure pump
- 40 [bars]
- * with paper filtering unit
- 600 [mm]
- Parts hydraulic clamping
- prepared
- Hydraulic counter balance
- upon Y axis
- Tool-holders
- 35
- 子类别
- 铣削
- 子类别 2
- 卧式切削中心
- 产品编号
- 73071369
描述

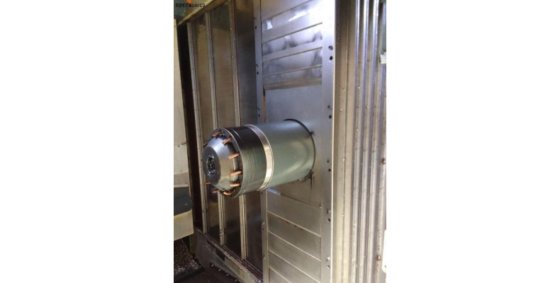

MILLING SPINDLE
LINEAR AXES
B ROTARY AXIS
TOOL CHANGER
PALLET CHANGER
- Distance table / spindle axis (min./max.) : 43 - 643 [mm]
- Distance table center / spindle nose (min./max.) : 145 - 945 [mm]
POWER SUPPLY
WEIGHT & DIMENSIONS
MACHINE HOURS
- Electronic handwheel
- Rigid tapping
- 3 colors status lamp
* with oil separator
* Coolant through spindle
* with washing gun
* with cabin washing
- Chips conveyor

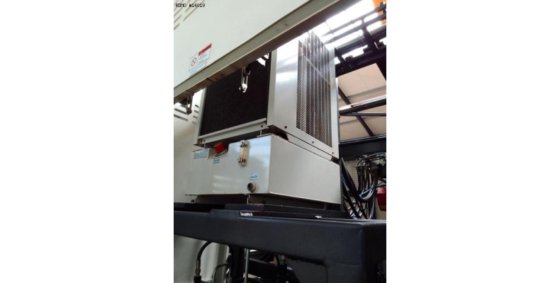

- Spindle cooling unit
