新 HG 5U PRO 3300 V4 在 米兰, 伦巴第, 意大利
新
Doubleclick to zoom in
请联系卖家咨询
更多照片和设备细节。
规格参数
- 新旧状况
- 新
- Models hg 5u pro
- 3300 V43300 V4 LN
- Electrolytic cell
- PEM technology
- Drying system
- PSA (Pressure Swing Adsorption) / TSA (Thermal Swing Adsorption)
- H2 purity (1)
- >99.99999% referred to O2, Dew-point
- Outlet pressure
- 12 bar (174 psi) / 16 bar (232 psi) (optional)
- H2 flow-rate cc/min (max)
- 3300
- Dimensions
- Standard 19“ 5U RACK (56 cm deep)
- Net weight (no water in tank)
- 29 kg
- N2 content
- 3 ppm< 1ppm
- Rs 485
- Standard
- Rs 232
- Standard
- Usb
- Standard
- Lan
- Optional
- Parallel mode
- Ready on board
- Automatic tank refill
- Standard
- Quality
- Deionized, ASTM II, <0.1uS
- Supply pressure (min, max)
- 0 bar (0 psi), 0.5 Bar (7.25 psi)
- Supply flow rate(min, max)
- 0.2 l/min, 1.5 l/min
- Internal tank capacity
- 1.1 l
- Power supply connection type
- IEC320-C14
- Power supply voltage
- Single-phase 180~264VAC 50/60 Hz
- Nominal power (max)
- 1920W
- Fuse (5x20mm)
- 10A (250VAC – T – L / 35A)
- Hydrogen outlet
- 1/8” compression fitting
- Water (inlet, drain)
- Quick release push-in fitting
- Vent
- 1/8” BSPP female
- 产品编号
- 72972894
描述

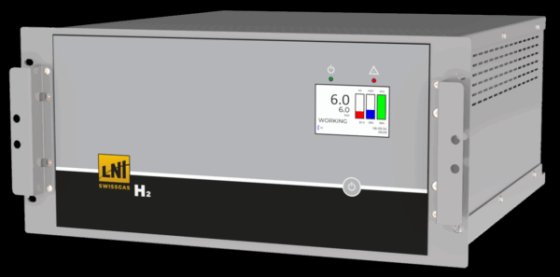

The HydroGen series HG 5U PRO 3300 V4 is able to generate 3300 cc/min of Hydrogen with purity better than 99.99999% and pressure up to 16 bar (232 PSI). The HG 5U PRO includes an electrolytic cell with polymeric membrane (PEM) using distilled water. The two-column PSA drying system with automatic regeneration ensures the maximum grade of hydrogen purity, and is completely maintenance-free. The HG 5U PRO is the ideal Hydrogen for all GC-FID detectors. The on-board CPU constantly controls the operating parameters to guarantee full safety. The touch-screen LCD interface provides simple and user-friendly management of all functions on the unit.
