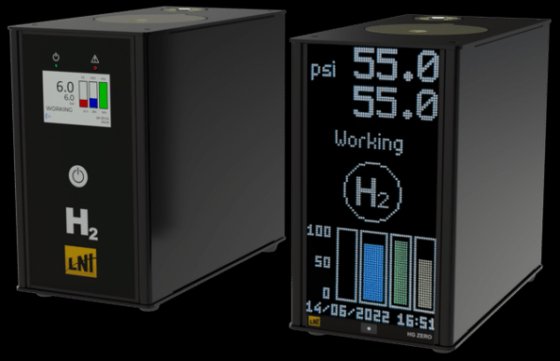

新 HG MINI 在 米兰, 伦巴第, 意大利
新
Doubleclick to zoom in
请联系卖家咨询
更多照片和设备细节。
规格参数
- 新旧状况
- 新
- Model hg mini
- 150150 D300300 D
- Electrolytic cell
- PEM technology
- Drying system
- Static DryerStatic dryer + Desiccant columnStatic DryerStatic dryer + Desiccant column
- H2 purity 1
- >99.9995%
- Dew-point 2
- <-30°C (-22°F)<-60°C (-76°F)<-30°C (-22°F)<-60°C (-76°F)
- Outlet pressure 3
- 12 bar (174 psi)
- H2 flow-rate (max)
- 150 cc/min300 cc/min
- Dimensions (w x d x h)
- 16 x 31.5 x 27.5 cm
- Net weight (no water in tank)
- 10 kg
- Led panel
- Standard
- Lcd colour display
- Optional – 6930.00.078
- Usb
- Standard
- Rs485
- Optional – 6930.00.054
- Wi-fi
- Standard 4
- Parallel mode
- Optional
- Quality required
- Deionized, ASTM II, <0.1uS
- Internal tank capacity
- 1 L
- Autorefill
- Optional – 6930.00.053
- Type of connection
- IEC 320-C13 (desktop adapter)
- Power supply voltage
- 100-240 (±10%) Vac 50/60 Hz
- Nominal power (max)
- 160 W220 W
- Hydrogen outlet
- 1/8” compression fitting
- Water
- Quick release push-in fitting
- Working temperature 5
- 5-40°C (41-104°F)
- Storage temperature
- 1-50°C (34-122°F)
- Humidity (max, non condensing)
- 70% [5-40°C (41-104°F)]
- Noise
- < 35dB(A)
- Ip rating
- IP20
- Pollution degree rating
- 2 (with no aromatic compounds)
- Altitude
- < 2000m
- 产品编号
- 72059187
描述
The HG MINI is able to generate up to 300 cc/min of Hydrogen with purity better than 99.9995% and pressure up to 12 bar (174 psi). The HG MINI includes a cell with polymeric membrane (PEM) using distilled water. No acid or alkaline solutions are involved.
The innovative static drying system ensures the maximum grade of hydrogen purity, protects the GC thanks to it’s unique humidity safe guard.
The on-board CPU automatically checks for internal leaks and constantly control the operating parameters to guarantee full safety. Up to 20 units can be connected in parallel mode using an external control box. The LED matrix interface provides a simple and immediate display of the status of the unit
