新 Julong KYE-24S型 电枢测试台 在 台州市, 浙江省, 中国
新
Doubleclick to zoom in
请联系卖家咨询
更多照片和设备细节。
规格参数
- 新旧状况
- 新
- 气源压力air pressure
- 0.5~0.7MPa
- 总功率total power
- 1.5kw
- 换向器直径commutator diameter
- ≤Φ30mm
- 铁芯外径core od
- ≤Φ60mm
- 换向器片数no.of commutator segments
- ≤60
- 子类别
- 微电机转子设备
- 产品编号
- 67771898
描述

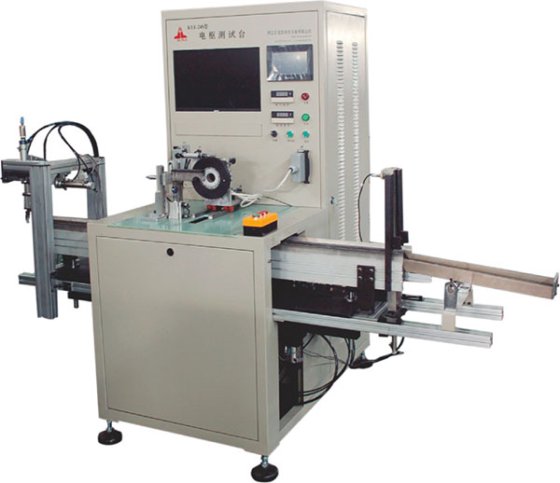

KYE-24S Armature Testing Machine
本机是焊接后检测电枢的电气强度、绝缘电阻、片间电阻、焊接电阻以及匝间绝缘的综合测试系统。本系统采用PⅣ双核工业微机作为主机，Windows多线程工控软件，速度极快。采用32位同步采集，数字运放和单元隔离技术，精度高，稳定性好。专业的测试夹具，使测试具有极高的兼容性和互换性。系统还具有多用户安全管理，机型配置，资料保存,数据分析，报表及打印等功能，本机配置机械手自动上下料，步进式工件移位，有测试合格或不合格产品分流通道，有满料光电感应停止功能，自动程度高。
This machine is a comprehensive test system
for the electrical strength, insulation resistance, chip resistance, welding
resistance and turn-to-turn insulation of the armature after welding.The system
uses P Ⅳ dual-core
industrial computer as a host, Windows multi-threaded industrial control
software, fast. Using 32-bit synchronous acquisition, digital operational
amplifier and cell isolation technology, high precision, good stability. Professional
test fixture, so that the test has a very high compatibility and
interchangeability. The system also has functions such as multi-user security
management, model configuration, data preservation, data analysis, report and
printing, etc.
