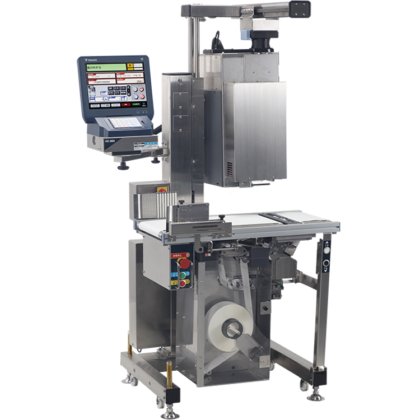

新 HC-800 在 东京都, 日本
新
Doubleclick to zoom in
请联系卖家咨询
更多照片和设备细节。
规格参数
- 新旧状况
- 新
- Labeler cassette type
- Cassette type; Non-cassette type
- Printing method
- Thermal printing (300 dpi)
- Label print speed
- Max. 200 mm/sec; Max. 300 mm/sec
- Package size
- Width; 50 to 240 mm
- Length (upper applicator)
- 50 to 240 mm
- Length (bottom applicator)
- 70 to 350 mm
- Height
- Max. 1824 mm; Max. 1870 mm
- Label size
- Upper Applicator *Non-cassette type Rotary applicator; Width; 40 to 80 mm
- Length
- 680 mm
- Upper applicator rotary applicator
- Width; 40 to 80 mm
- Bottom applicator non-cassette type
- Width; 40 to 80 mm
- Dimensions of main unit
- Width; 750 mm
- Conveyor height
- 800 mm ±50 mm
- Direction of product flow
- Right flow or Left flow
- Power supply
- 100V Single phase
- Power consumption
- 260 W; 390 W
- Conveyor speed (m/min.)
- 5.5 to 50 (Variable)
- Air consumption
- Upper Applicator; Max. 1.61 ℓ/sheet
- Bottom applicator
- Max. 2.36 ℓ/sheet
- Weight of main unit
- 130 kg; 150 kg
- Operating temperature
- 5℃ to 35℃ (without condensation)
- 子类别
- 贴标系统 (中心系统)
- 产品编号
- 66604336
描述
感谢您访问我们的网站。现在，我们仅能用英语提供本信息。我们正在不断努力用中文提供更多的内容。感谢您耐心等待！
The latest model in the industry's top-selling lineup of automatic thermal labelers for food processing lines
HC-800
食品工业
主要功能
Taking advantage of know-how cultivated from a large installed user base, HC-800 is a label printer with great ease of use and convenience, making it ideal for convenience stores and volume retailer vendor systems. By installing a special application, the printer is able to display and print a variety of labels for processed foods, such as bento lunch boxes and side dishes. We completely revamped the basic functionality to allow more accurate and efficient operation in an easy-to-clean, space-saving form factor.
Realizing more advanced labeling
HC-800 realizes improved performance over conventional labelers in terms of cleaning, space-savings, speed, and precision. The top labeler uses a rotating applicator, so a label angle can be set for each master.
