新 AW-5600CPRII-IWC 在 东京都, 日本
新
Doubleclick to zoom in
请联系卖家咨询
更多照片和设备细节。
规格参数
- 新旧状况
- 新
- Wrapping speed
- Max. 30 packages/min.
- Package size
- Width: 130-350 mm/5.1-13.8 inches Height: 10-150 mm/0.4-5.9 inches Depth: 80-230 mm/3.1-9.0 inches Packages with the combined maximum measurements of the 3 dimensions cannot be accommodated. The available sizes of package also depends on the film size.
- Number of film roll
- One
- Film width
- 300 to 500 mm
- Interval type
- Multi interval; Single inerval
- Capacity
- Max 3/6 kg; Max 6/15 kg; Max. 30 lb
- Scale interval
- e=1/2 g; e=2/5 g; e=0.01 lb
- Weighing range
- 20 g-6 kg; 40 g-15 kg; 0.20-30 lb
- Max. wrapping capacity
- 5 kg; 5 kg; 11 lb
- Label type
- Die-cut label; Linerless label
- Label width
- 40-80 mm/ 1.6-3.1 inches; 44-59 mm/ 1.73-2.3 inches
- Label length
- 28-105 mm/ 1.1-4.1 inches; 28-105 mm/1.1-4.1 inches* * Maximum printing length is 300 mm/ 11.8 inches
- Label roll diameter
- Max. 210 mm (8.2 inches)
- Label roll core diameter
- 76 mm (3.0 inches)
- Operation console
- TFT LCD color (15 inches) touch panel
- Operation keys
- Mechanical keys and touch screen
- Memory for programmable files
- 18 GB
- Power source and power consumption
- 208-240 V; 1 φ/3 φ; 60 Hz; 2.2 kVA,2.0 kW 220-240 V; 1 φ; 50/60 Hz; 2.2 kVA,2.0 kW
- Net weight
- Approx. 372 kg (AW-5600CPRII IWC Single Labeler Type)
- 子类别
- 称重-包装-贴标机
- 产品编号
- 66604173
描述

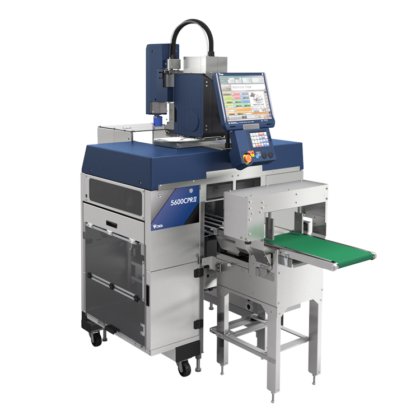

Integrated in-line weigh-wrap-label system
AW-5600CPRII-IWC
零售业
主要功能
The AW-5600CPRII IWC is a fully automatic, integrated weigh/wrap/label system designed for in-line production and equipped with centering device.
Integrated in-line weigh-wrap-label system
The latest in-line automatic weigh-wrap-label system to meet various layout options.
High productivity
The AW-5600CPRII IWC provides high productivity, achieving up to 30 packages/min of integrated weigh/wrap/label operation.
It also features tray press that ensures strong sealing to maintain tight and beautiful wrapping finish.
Easy operation
The operation of AW-5600CPRII IWC is easy and user-friendly with its large, clear and quick response touch screen, as well as preset keys to call up PLU by a single touch. Operators can also preview the label image to ensure that correct information will be printed on the labels.
Quick film change and easy daily maintenance
