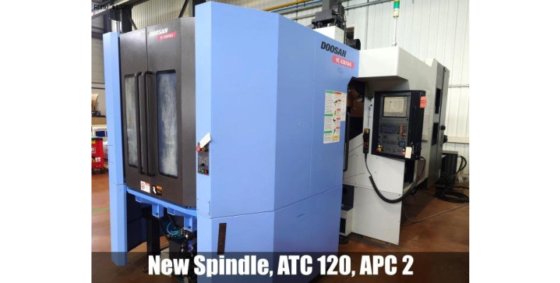

二手 Doosan VC630 5AX5 轴数 在 Contamine-sur-Arve, 奥弗涅-罗讷-阿尔卑斯, 法国
二手
Doubleclick to zoom in
请联系卖家咨询
更多照片和设备细节。
规格参数
- 新旧状况
- 二手
- 年份
- 2011
- 序列号
- MV0043-000064
- 库存编号
- 13709
- 品牌：
- Doosan
- 型号：
- VC630 5AX
- 出厂时间：
- 2011
- 序列号：
- MV0043-000064
- Number of axes
- 5
- Tool holder type
- BT40
- Spindle power
- 24/32 [kW]
- Spindle speeds
- 12000 [rpm]
- Number of spindle hours
- 9122 [h]
- Travels on x/y/z axes
- 650/765/520 [mm]
- Rapid traverses rates (x/y/z)
- 40/40/36 [m/min]
- Cutting feed rates (x/y/z)
- 18/18/18 [m/min]
- Travel
- 360 [°] (+/-)
- Rapid traverse rate
- 30 [rpm]
- Cutting feed rate
- 7200 [mm/min]
- Indexing precision
- 0.001 [°]
- Auto. tool changer type
- Loading arm
- Tool magazine capacity
- 120
- Tool exchange time
- 1 [sec]
- Table dimensions
- 500 X 500 [mm]
- Maximum weight upon table
- 500 [kg]
- Pallet size
- 500 x 500 [mm]
- Pallets number
- 2
- Pallet exchange time
- 30 [sec]
- Total installed power
- 54 [kW]
- Number of hours under power
- 24226 [h]
- Number of working hours
- 9122 [h]
- Cnc
- Heidenhain TNC530
- Interface
- RS232 / USB / PCMCIA
- * with high-pressure pump
- 20 [bars]
- Tool probe
- Renishaw
- 子类别
- 铣削
- 子类别 2
- 立式切削中心
- 产品编号
- 66563471
描述
MILLING SPINDLE
LINEAR AXES
A ROTARY AXIS
B ROTARY AXIS
TOOL CHANGER
TABLE
- Distance table / spindle nose (min./max.) : 160/680 [mm]
PALLET CHANGER
POWER SUPPLY
MACHINE HOURS
- Electronic handwheel
- 3 colors status lamp
- COOLANT TANK
- Coolant through spindle
- Chips conveyor
- Spindle cooling unit
- Electric transformer
