二手 Keysight Technologies U1452A 在 哈罗, 英格兰, 英国
二手
Doubleclick to zoom in
请联系卖家咨询
更多照片和设备细节。
规格参数
- 新旧状况
- 二手
- High frequency (range)
- DC ＜= 1kHz
- U1451a
- Measures up to 66GΩ, test voltage range 250V to 1kV, wireless testing and automatic test report generation.
- U1452a
- Measures up to 260 GΩ, test voltage range 50V to 1kV, wireless testing and automatic test report generation.
- U1452at
- Measures up to 66GΩ, test voltage range 50V to 100V, wireless testing and automatic test report generation.
- U1453a
- Measures up to 260GΩ, wireless testing, automatic test report generation, adjustable output voltage 10V to 1.1kV and OLED display
- U1461a
- Measures up to 260GΩ, wireless testing, automatic test report generation, adjustable output voltage 10V to 1.1kV and 4.5 digits DMM with OLED display.
- Features
- Parameters
- Battery type
- 4 × 1.5 V AA Alkaline batteries (ANSI/NEDA 15A or IEC LR6) 4 × 1.5 V AA Lithium Iron Disulfide batteries (ANSI/NEDA 15LF or IEC FR6) 4 × 1.5 V AA Zinc Chloride batteries (ANSI/NEDA 15D or IEC R6) (U1453A/U1461A only)
- Battery life u1451a/u1452a/u1452at u1453a/u1461a
- 270 hours (Alkaline batteries) 50/60/80 hours typical at high/medium/low brightness (Alkaline batteries)
- Power consumption
- 2.7 VA maximum (with backlight/maximum brightness)
- Fuse
- 10 × 35 mm 30 kA fast-acting fuse
- Display u1451a/u1452a/u1452at u1453a/u1461a
- Liquid Crystal Display (LCD), 4 digits with maximum reading of 6,600 counts Organic LED (OLED) with maximum reading of 6,600/66,000 and 660/6,600 counts selectable (Note: OLED is made of organic materials and it has its lifespan.)
- Connectivity
- IR-to-USB cable U1117A IR-to-Bluetooth Adapter (Bluetooth Class 1) U1177A IR-to-Bluetooth Adapter (Bluetooth Class 2)
- Operating environment u1451a/u1452a/u1452at
- –20 to 55 °C, 0% to 80% RH (with alkaline batteries) 0 to 2000 meters altitude
- Operating environment u1453a/u1461a
- –20 to 55 °C, 0% to 80% RH (with alkaline batteries) –40 to 55 °C, 0% to 80% RH (with lithium batteries) 0 to 2000 meters altitude
- Storage compliance
- –40 to 70 °C, 0% to 80% RH with battery removed
- Safety compliance
- IEC/EN 61010-1:2010 EN 61557-1 IEC/EN 61557-2 IEC/EN 61557-4
- Emc compliance
- IEC 61326-1:2005/EN 61326-1:2006
- Measurement category
- CAT III 1000 V/CAT IV 600 V
- Common mode rejection ratio (cmrr)
- ＞ 120 dB at DC, 50/60 Hz ± 0.1% (1 kΩ unbalanced)
- Normal mode rejection ratio (nmrr)
- ＞ 60 dB at 50/60 Hz ± 0.1%
- Temperature coefficient u1451a/u1452a/u1452at u1453a/u1461a
- 0.05 × (specified accuracy)/°C (from –20 to 18 °C, or 28 to 55 °C) 0.05 × (specified accuracy)/°C (from –40 to 18 °C, or 28 to 55 °C)
- Ip rating
- IP-67, protected against dust and the effect of immersion between 15 cm and 1 m
- Drop test
- 1 meter per EN/IEC 61010-1:2001 and 3 meters (10 feet), 6 sides drop to oak floor and tester with holster
- Dimensions (w × h × d)
- 100 × 218 × 58 mm
- Weight u1451a/u1452a/u1452at u1453a/u1461a
- 728 grams (with alkaline batteries and rubber holster) 686 grams (with lithium batteries and rubber holster)
- 子类别
- Lcr meters
- 子类别 2
- Test equipment
- 产品编号
- 65901707
描述

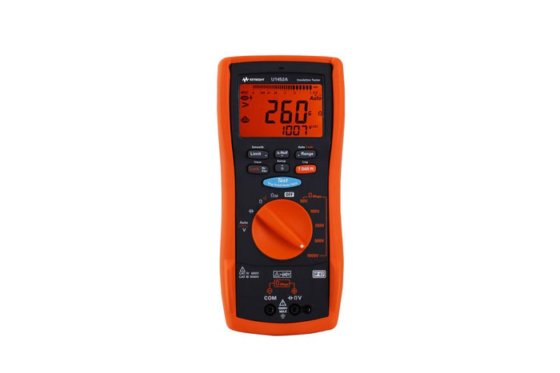

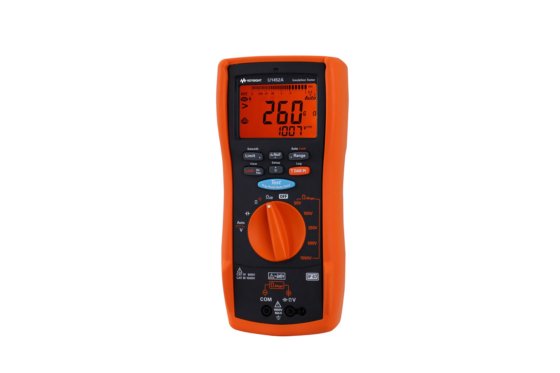

Insulation Resistance Tester; Handheld, 50V to 1kV
The U1452A insulation resistance tester from the U1450A series is ideal for predictive and preventive maintenance measurement tasks in electrical and industrial applications. With its vast measurement capabilities, efficient automated report generation and high durability, you can accomplish more in a day’s work.
By adding a U1117A Bluetooth® adapter to the U1452A, you are able to perform tests remotely using a Windows® PC or on iOS/ Android smart devices.
Also, get test reports generated automatically with the insulation resistance testers’ complimentary reporting software. These test reports can be generated in a tabulated or graphical form for easy interpretation and analysis.
The U1452A is certified to IP 67 and tested to withstand drops of up to three meters (10 feet), letting you carry out tests with full confidence even in harsh working conditions.
