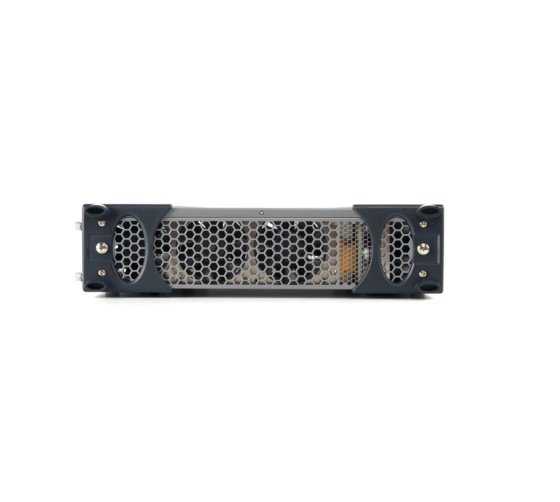

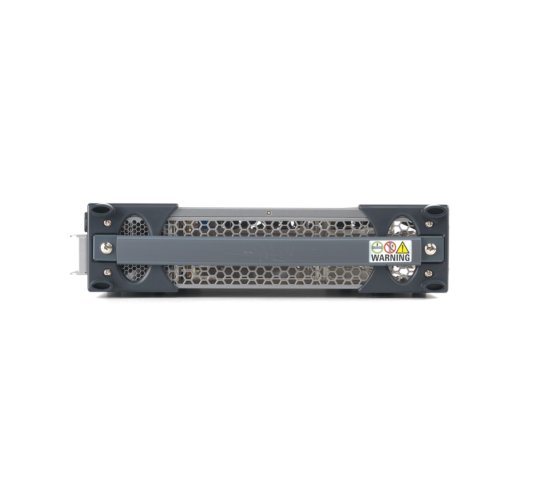

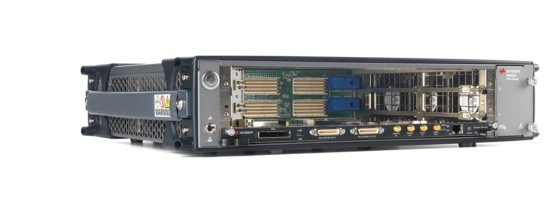

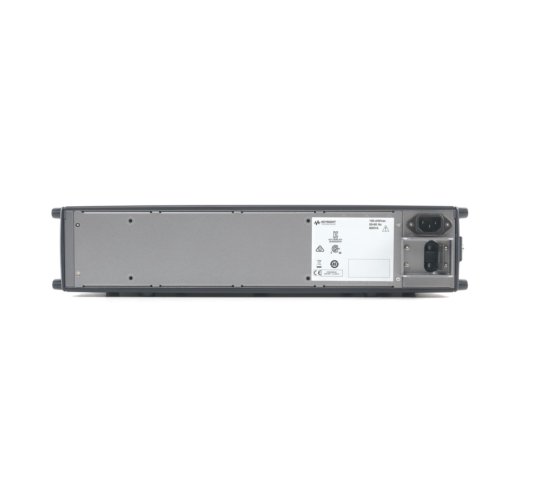

二手 Keysight Technologies M9502A 在 哈罗, 英格兰, 英国
二手
Doubleclick to zoom in
请联系卖家咨询
更多照片和设备细节。
规格参数
- 新旧状况
- 二手
- Maximum state mode
- PlugInRequired
- Maximum timing mode
- PlugInRequired
- Channel/port count
- 2
- Form factor
- AXIe
- Functionality
- 2 slots for AXIe instrument modules Embedded AXIe system module High Power, 200W Cooling per slot
- Performance characteristics
- Gigabit LAN connection to each module slot Gen 2 PCIe x8 interface to system controller provides up to a 4 GB/s data rate from external controller Gen 2 PCIe x4 links to each module slot (maximum 2 GB/s data rate)
- Applications
- Transportable applications (can also be rack-mounted)
- Feature
- Parameter
- Bandwidth
- Module-to-module: 2 GB/s System-to-backplane: 4 GB/s
- Connectivity
- LAN PCIe
- Description
- M9502A 2-slot AXIe chassis for transportable applications. Includes embedded system module and Gen 2, x8 link to external controller.
- Height
- 2U
- Slots
- 2
- M9502a
- AXIe chassis: 2-slot with embedded system
- M9505a
- AXIe chassis: 5-slot with embedded system
- Opt u20
- ESM USB 2.0 * Includes USB cable
- 分类
- 示波器 在 英国
- 子类别 2
- Test equipment
- 产品编号
- 65901565
描述
AXIe Chassis; 2 Slot with Embedded System
M9502A 2-slot AXIe chassis for transportable applications. Includes embedded system module and Gen 2, x8 link to external controller.
The M9502A AXIe Chassis is fully compatible with the AXIe 1.0 specification. It includes an embedded system module (ESM) that does not take up an instrument slot. This system module performs the chassis management functions contained in the AXIe specification. Additionally, it provides PCI and LAN interfaces for connection to an external computer, external clock and trigger connectors, and Keysight-exclusive, inter-chassis synchronization connectors. The local bus implemented in the M9502A provides the maximum 62 pairs allowed by the AXIe specification. Combine the M9502A with the M9048A PCIe Desktop Adaptor to achieve the highest system bandwidth.
The M9502A is perfect for transportable applications that require the higher performance of AXIe.
