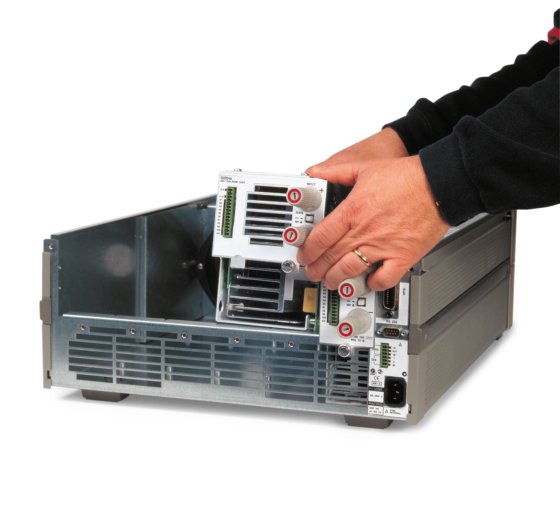

二手 Keysight Technologies N3304A 在 哈罗, 英格兰, 英国
二手
Doubleclick to zoom in
请联系卖家咨询
更多照片和设备细节。
规格参数
- 新旧状况
- 二手
- Maximum current
- 60A
- Feature
- Parameter
- Input ratings
- Current: 0 - 60 A Voltage: 0 - 60 V Maximum Power: 300 W
- Constant current mode
- Low Range/High Range: 6 A/60 A Regulation: 10 mA Low Range Accuracy: 0.1% + 7.5 mA High Range Accuracy: 0.1% + 15 mA
- Constant voltage mode
- Low Range/High Range: 6 V/60V Regulation: 10 mV Low Range Accuracy: 0.1% + 3 mV High Range Accuracy: 0.1% + 8 mV
- Constant resistance mode
- Range 1 (I ＞10% of current rating): 0.033-2 Ω Range 2 (I ＞1% of current rating): 1.8-20 Ω Range 3 (I ＞0.1% of current rating): 18-200 Ω Range 4 (I ＞0.01% of current rating): 180-2000 Ω
- Number of inputs
- Up to 6
- Total power
- 600 to 1800 W
- Programming accuracy
- 0.1% + 4 mA
- Measurement accuracy
- 0.05% +2.5 mA
- Connectivity
- GPIB and RS232

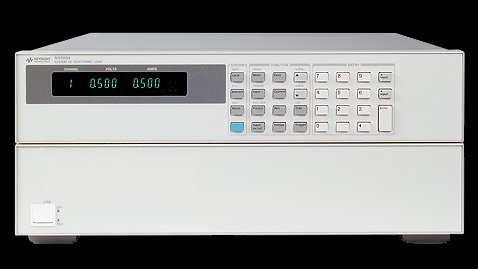

- N3300a
- The Keysight N3300A is a full-rack width mainframe with 6-slots that accepts combinations of N330xA user-installable load modules (150 W to 600 W) for easy system configuration and future reconfiguration.
- N3301a
- The Keysight N3301A is a half-rack width mainframe with 2-slots that accepts combinations of N330xA user-installable load modules (150 W to 600 W) for easy system configuration and future reconfiguration.
- N3302a
- The Keysight N3302A is a 150 W (0-30A, 0-60V) electronic load module for use in either the N3300A or N3301A electronic load mainframe in system applications.
- N3303a
- The Keysight N3303A is a 250 W (0-10A, 0-240V) electronic load module for use in either the N3300A or N3301A electronic load mainframe in system applications.
- N3304a
- The Keysight N3304A is a 300 W (0-60A, 0-60V) electronic load module for use in either the N3300A or N3301A electronic load mainframe in system applications.
- N3305a
- The Keysight N3305A is a 500 W (0-60A, 0-150V) electronic load module for use in either the N3300A or N3301A electronic load mainframe in system applications.
- N3306a
- The Keysight N3306A is a 600 W (0-120A, 0-60V) electronic load module for use in either the N3300A or N3301A electronic load mainframe in system applications.
- N3307a
- The Keysight N3307A is a 250 W (0-30A, 0-150V) electronic load module for use in either the N3300A or N3301A electronic load mainframe in system applications.
- 产品编号
- 65897666
描述
Electronic Load Module; 300 Watt
The N3300 Series supports up to six channels, each with a unique maximum voltage and current. They allow the design of a flexible automated test equipment (ATE) system to verify many types of power supplies, DC-to-DC converters, and batteries. Add additional modules to test multiple power sources simultaneously. Each module includes a 16-bit voltage, current, and power measurement system.
The Keysight N3304A is a 300 W (0-60A, 0-60V) electronic load module for use in either the N3300A or N3301A electronic load mainframe in system applications. The N3304A load module is fast and accurate, for programming in constant current, constant voltage, or constant resistance modes, or for making voltage, current or power measurements. The N3304A can also digitize waveforms.
Testing multiple output dc power supplies and dc-dc converters can be very time consuming if each output must be tested sequentially.
