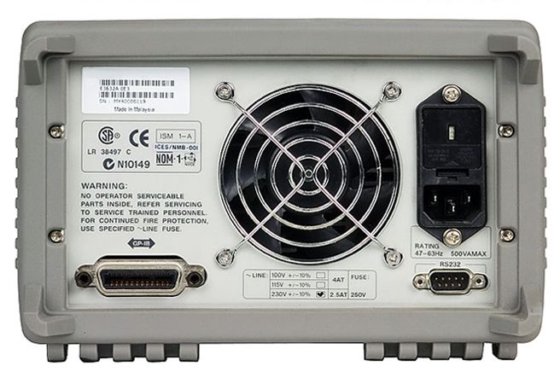

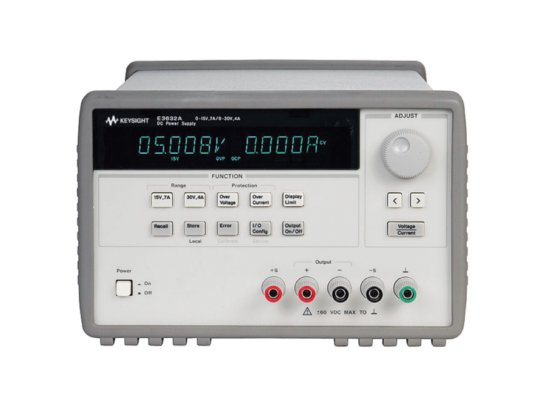

二手 Keysight Technologies E3632A 在 哈罗, 英格兰, 英国
二手
Doubleclick to zoom in
请联系卖家咨询
更多照片和设备细节。
规格参数
- 新旧状况
- 二手
- Maximum voltage
- 30V
- Maximum current
- 4A
- Maximum power
- 120W
- Channel/port count
- 1
- Feature
- Parameter
- Output ratings
- Range 1: 0 to 15 V, 7 A Range 2: 0 to 30 V, 4 A
- Programming accuracy at 25°c ±5°c
- Voltage: 0.05% + 10 mV Current: 0.2% +10 mA
- Ripple & noise (20 hz to 20 mhz)
- Normal-mode voltage: ＜350 µVrms/2 mVpp Normal-mode current: ＜2 mA rms
- Readback accuracy at 25°c ±5°c
- Voltage: 0.05% + 5 mV Current: 0.15% + 5 mA
- E3631a
- 80-Watt Triple Power Supply
- E3632a
- 120-Watt Single Power Supply
- E3633a
- 200-Watt Single Power Supply
- E3634a
- 200-Watt Single Power Supply
- 产品编号
- 65897431
描述
DC Power Supply; 15V, 7A or 30V, 4A, 120W
When your requirements demand more power, the E3630 series offers up to 200 W per output. These linear power supplies meet the requirements of the most demanding applications in R&D design verifications, production testing, and QA verifications with quality and reliability you can count on.
Three single output with power supplies dual-range comprise the E3630 linear power supply series. The dual range supplies give you a high and low voltage range – the low range has the ability to source more current. Also, the E3630 Series offer 4-wire remote sense to give you an accurate voltage at the load. Tests are automated using the RS232 or GPIB interface. When you need reliable power up to 200 W, consider the time-tested E3630 series.
Keysight basic DC power supplies offer essential features for a tight budget. The single output, 120-200 W, GPIB, E3632A-E3634A provide dual range outputs; small, compact size for bench use; low output ripple and noise;
