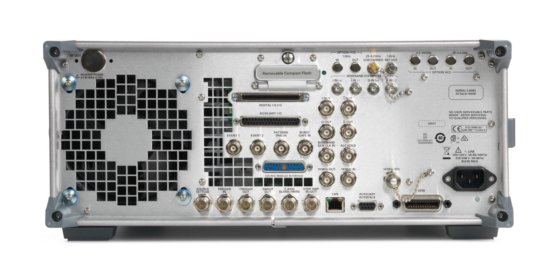

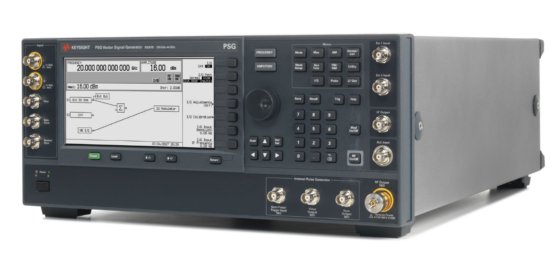

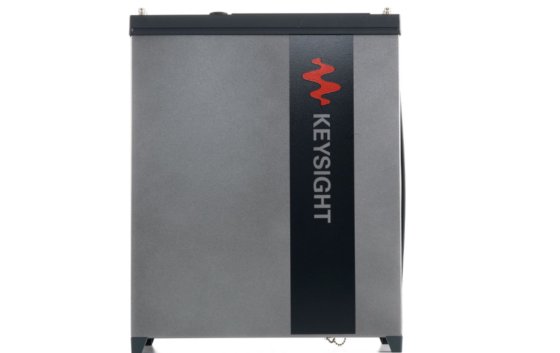

二手 Keysight Technologies E8267D 在 哈罗, 英格兰, 英国
二手
Doubleclick to zoom in
请联系卖家咨询
更多照片和设备细节。
规格参数
- 新旧状况
- 二手
- Form factor
- Benchtop
- Features
- Parameters
- Frequency
- n/a
- Frequency options
- 13, 20, 31.8, 44 GHz, Extend to 1.1 THz
- Performance level
- ◆◆◆◆◆◇
- Output power @1 ghz
- n/a
- Phase noise @1 ghz (20 khz offset)
- n/a
- Frequency switching (typical)
- n/a
- Harmonics @1 ghz
- n/a
- Iq modulation bw internal/external
- 80 MHz to 4 GHz
- Non-harmonics @1 ghz
- n/a
- Sweep mode
- n/a
- Baseband generator mode
- Waveform playback and real-time
- Software-general purpose
- AM, FM, PM Analog I/Q Input ASK Custom I/Q Map Digital I/Q Input FSK, MSK I/Q Waveform Jitter Injection MATLAB Multitone, NPR Noise (AWGN) PSK Pulse QAM Real-Time I/Q
- Software-cellular/wireless connectivity
- 1xEV-DO 802.11 WLAN 802.16 WiMAX Bluetooth® cdma2000 cdmaOne EDGE Evolution GPRS/EGPRS GSM/EDGE HSPA, HSPA+ NADC, PDC PHS, DECT TD-SCDMA TETRA, APCO UWB W-CDMA
- Software-audio/video broadcasting
- ATSC, ATSC-M/H CMMB DOCSIS DS DTMB DVB-C/S/S2 DVB-T/H/T2 ISDB-T/TSB/TB/Tmm J.83 Annex A/B/C
- Software-detection/positioning/tracking/navigation
- n/a
- Waveform playback memory
- 64 Msa
- Frequency modulation-maximum deviation @1 ghz
- n/a
- Frequency modulation-rate @100 khz deviation
- n/a
- Phase modulation-maximum deviation
- n/a
- Phase modulation-maximum deviation in high-bw mode
- n/a
- Amplitude modulation-maximum depth
- n/a
- Amplitude modulation-rate
- n/a
- Applications available
- Yes
- Vector
- Yes
- E8267d
- Integrated high-performance microwave vector signal generator covers frequencies from 100 kHz to 44 GHz (extendable to 500 GHz) for design and manufacturing in aerospace defense, satellite communications, and broadband wireless.
- 1819-0427
- 8 GByte compact flash memory card
- 8120-8806
- Primary/secondary interface cable
- N5102a
- Digital signal interface module
- E8663d
- High-performance analog signal generator offers high output power, low phase noise, and tunes over a frequency range from 100 kHz to 9 GHz for radar systems, satellite evaluation, and when a low noise local oscillator is required.
- E8257d
- Metrology-grade analog signal generator offering industry-leading output power, level accuracy, and phase noise, with frequency coverage from 100 kHz to 67 GHz (extendable to 500 GHz) for testing advanced RF and microwave radar.
- 产品编号
- 65896483
描述
PSG Series Vector Signal Generator
Integrated high-performance microwave vector signal generator covers frequencies from 100 kHz to 44 GHz (extendable to 500 GHz) for design and manufacturing in aerospace defense, satellite communications, and broadband wireless.
Keysights E8267D PSG vector signal generator is the industry's first integrated microwave vector signal generator with I/Q modulation up to 44 GHz, 23 dBm typical output power up to 20 GHz and -120 dBc/Hz phase noise at a 10 kHz offset for a 10 GHz signal. In addition to the high output power and outstanding phase noise you would expect from a high performance microwave source.
The PSG features an advanced wideband internal baseband generator capable of flexible arbitrary waveform playback or sophisticated real-time signal generation.
