新 HG PRO LN 在 米兰, 伦巴第, 意大利
新
Doubleclick to zoom in
请联系卖家咨询
更多照片和设备细节。
规格参数
- 新旧状况
- 新
- Model hg pro ln
- 700900110013001500
- Electrolytic cell
- Long life Multilayer PEM technology
- Drying system
- PSA (Pressure Swing Adsorption)
- H2 purity
- >99.99999% *1
- Outlet pressure
- 12 bars (174 psi) / 16 bars (232 psi) (optional)
- H2 flow-rate (max)
- 700900110013001500
- N2 content
- < 1 ppm
- Dimensions (w x d x h)
- 27 x 44 x 41 cm
- Net weight (no water in tank)
- 23.5 Kg26 Kg27 Kg
- Rs-232 / usb / rs-485
- Standard
- Digital i/o
- Standard
- Lan
- Optional
- Parallel mode
- Ready on board
- Automatic tank refill
- Standard
- Fill hydride canister function
- Standard
- Quality required
- Deionized, ASTM II, <0.1uS
- Supply pressure (min, max)
- 0.1 bar (1.45 psi), 0.5 bar (7.25 psi)
- Supply flow rate (min, max)
- 0.2 l/min, 1.5 l/min
- Internal tank capacity
- 3 L
- External tank capacity
- 5 or 10 L (optional)
- Type of connection
- IEC 320-C14
- Power supply voltage
- 100-240 Vac (±10%) 50/60 Hz
- Nominal power (max)
- 640W750W
- Fuse rating (5x20mm)
- 6.3A (250 Vac – T)
- Hydrogen outlet
- 1/8” compression fitting
- Water
- Quick release push-in fitting
- Working temperature
- 5-40°C (41-104°F)*2
- Storage temperature
- 1-50°C (34-122°F)
- Humidity (max, non condensing)
- 70%
- Noise
- < 35dB(A)
- Ip rating
- IP20
- Pollution degree rating
- 2 (with no aromatic compounds)
- Altitude
- < 2000m
- 产品编号
- 64255176
描述

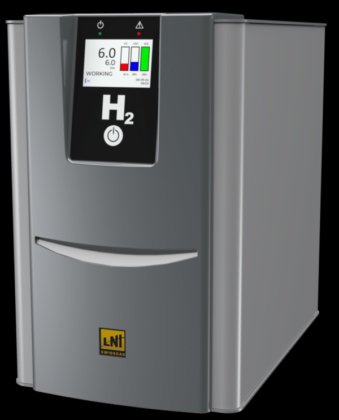

The HydroGen series HG PRO LN is able to generate up to 1500 cc/min of Hydrogen with purity better than 99.99999% a pressure up to 16 bar (232 psi) and a N2 content < 1 ppm.The HG PRO includes a new long life multilayer electrolytic cell with polymeric membrane (PEM) using distilled water. No acid or alkaline solutions are used.The innovative gas drying system (two-column drying PSA system with automatic regeneration) ensures the maximum grade of hydrogen purity, it is completely maintenance-free and allows continuous operation, 24 hours a day.The on-board CPU automatically checks for internal leaks and constantly control the operating parameters to guarantee full safety. Up to 20 units can be connected in parallel using an external control box.The touch-screen LCD interface provides simple and user-friendly management of all functions on the unit.
