新 TOPTICA FALC pro 在 慕尼黑, 巴伐利亚州, 德国
新
Doubleclick to zoom in
请联系卖家咨询
更多照片和设备细节。
规格参数
- 新旧状况
- 新
- Operation
- Using the interface of the DLC pro*
- Requirements
- Requires CAN bus interface of MC+ module of DLC pro**
- Typically connected to
- Input of DLC pro
- Pic regulator
- Three integrator stages, two differential stages: PI³D²
- Bandwidth
- 15 kHz
- Signal delay
- < 10 ns
- Dc gain
- -60 dB to +95 dB
- Output voltage range
- ± 3.7 V at loads > 1 kΩ
- Output impedance
- 50 Ω, although intended for high-impedance loads
- Flexibility
- 12 steps of slew rate, spanning 7 decades of frequency, full access in remote operation
- Regulator
- Single integrator stage, independent of fast branch
- Layout
- Two RF inputs connected to an integrated low-noise mixer
- Typical application
- Phase locks, generation of a PDH error signal
- Input noise density
- < 3.0 nV/√ Hz
- Input voltage range
- ± 0.36 V for lowest noise, ± 1.8 V for largest range
- Input impedance
- 50 Ω (AC-coupled)
- Frequency range
- 5 MHz .. 200 MHz
- Optimum lo input level
- -8 .. -5 dBm
- Abs. max. ac input level
- RF input: +17 dBm, LO input: +13 dBm
- Mounting options
- Optical breadboards: May be mounted vertically or horizontally to both, metric and imperial*** Each T-RACK can take up to six FALC pro.
- Size
- 54.2 x 105 x 200 mm3 (H x W x D) without mounting brackets***
- Weight
- 900 g
- Power supply
- Either through CAN bus from DLC pro (one FALC pro per DLC pro only) or 100 - 240 V~, 50 / 60 Hz (power supply adaptor included)
- Power consumption
- ~ 6 W
- 子类别
- 可调谐半导体激光器
- 产品编号
- 64246568
描述

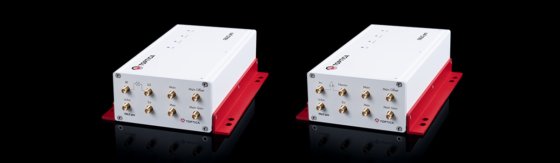

No compromise: Fast and Convenient PI³D² regulator 10 ns delay Remote locking The FALC pro is the latest locking module of TOPTICA. Its high speed regulator allows to address even the most demanding applications, including laser driving ultra-narrow transitions utilized in optical clocks (clock transitions) or quantum computer (optical q-bits). This regulator is combined with a convenient user interface, which allows optimize the feedback parameters with ease. The digital control interface of the analog regulator also enables full remote operation.Typical applications of this locking modules include linewidth narrowing of a laser using external reference cavities, e.g. in Pound-Drever-Hall locks (in combination with PDH/DLC pro), locking any DLC pro controlled TDLS laser to a frequency comb, or phase locking one TDLS laser to another.
