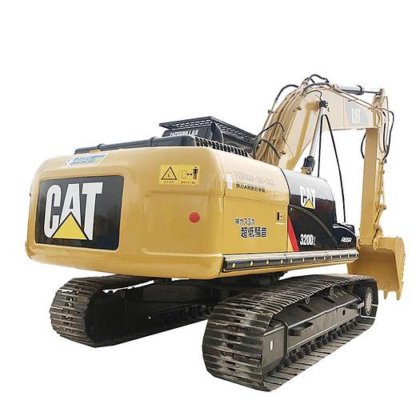

二手 2018 CATERPILLAR 320D 在 上海市, 中国

Brand: Caterpillar

Standard bucket capacity: 1m ³

Vehicle weight: 20930KG

Engine power: 103KW

Engine brand: CAT

Engine model: C6.4 ACERT

Engine fuel tank capacity: 410L

Engine displacement: 6.37L

Maximum excavation height: 9480mm

Maximum unloading height: 6500mm

Maximum excavation depth: 6710mm

Maximum vertical excavation depth: 6180mm

8-foot horizontal maximum excavation depth: 6540mm

Minimum unloading height: 2180mm

Boom length: 5700mm

Stick length: 2900mm

Stick digging force (ISO): 106.4kN

Bucket digging force (ISO): 140.1kN

Standard bucket width: 1232mm

Maximum flow of main pump: two × 205L/min

Maximum flow of pilot pump: 32.4L/min

Set pressure of slewing oil circuit overflow valve: 25Mpa

Set pressure of relief valve of working oil circuit: 35Mpa

Set pressure of traveling oil circuit relief valve: 35Mpa

Set pressure of pilot oil circuit relief valve: 3.9Mpa

Boom cylinder quantity * cylinder diameter * stroke: 2*120*1260mm

Stick cylinder quantity * cylinder diameter * stroke: 1*140*1504mm

Bucket cylinder quantity * cylinder diameter * stroke: 1*120*1104mm

Hydraulic tank capacity: 120L

Hydraulic system capacity: 260L

Engine coolant capacity: 25L

Engine oil capacity: 30L

Slewing device capacity: 8L

Capacity of traveling reducer: 10L

Track shoe width: 600mm

Track length: 4075mm

Track center distance / track gauge: 2200mm

Track grounding length (wheel spacing): 3265mm

Maximum traction: 206KN

Travel speed (high / low): 5.7km/h

Slewing speed: 11.5r/min

Tail turning radius: 2750mm

Minimum ground clearance: 450mm

Ground clearance of counterweight: 1020mm

Platform width: 2800mm

Total height of cab: 2950mm

Overall length: 9460mm

Overall width: 2800mm

Overall height: 3050mm
