新 15V / 3A, 5A peak, Mobile Communications DC Source 行動通訊直流電源 在 桃园市, 台湾
新
Doubleclick to zoom in
请联系卖家咨询
更多照片和设备细节。
规格参数
描述

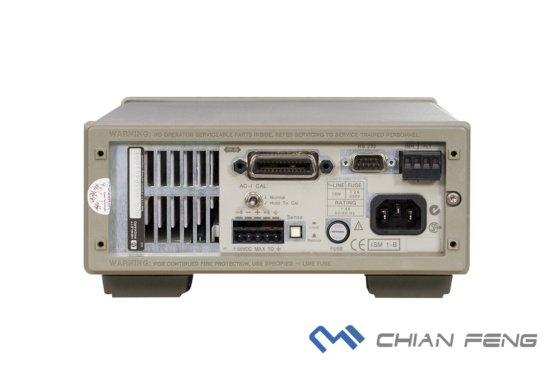

HP 66311B 15V / 3A, 5A peak, Mobile Communications DC Source 行動通訊直流電源
Key Features & Specifications
Output Ratings
Voltage: 0 to 15 V
Current: 0 to 3 A
Peak Current for up to 7 ms: 5 A
Programming accuracy at 25°C ±5°C
Voltage: 0.05%+ 10 mV
+ Current: 0.05%+ 1.33 mA
DC Readback Accuracy
Voltage: 0.03% + 5 mV
Current (+20 mA to + rated current): 0.2% + 0.5 mA
Current (-20 mA to – rated current): 0.2% + 1.1 mA
Current (-20 mA to + 20 mA range): 0.1% + 2.5 µA
Transient Response
70 mV drop, <35 µs transient response time
Description
The Mobile Communications DC Source 663xx series offers several features ideal for testing wireless and battery powered devices. Excellent voltage transient response ensures maximum test-system throughput by minimizing device shutdowns due to significant voltage drops in the test wiring.
