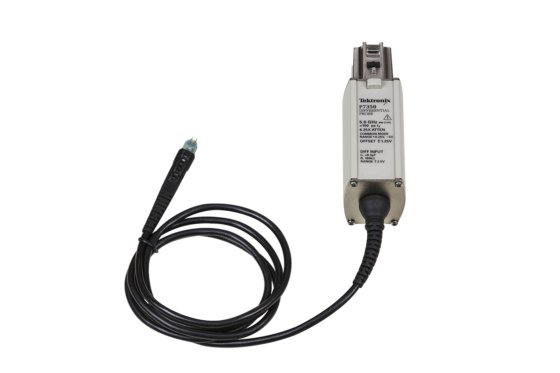

Tektronix P7350 5GHz, Differential Probe 差動式探棒
Features
<100 ps Rise Time (P7350 guaranteed)
5 GHz to 3.5 GHz Bandwidths (typical)
Low Input Capacitance:
<0.3 pF Differential (P7350 typical)
≥60 dB (1000:1) Common Mode Rejection Ratio (CMRR) at 1 MHz (P7330, P6330 typical)
Small Probe Head Allows Easy Probing of SMDs
Applications:
Communications (Gigabit Ethernet, Fibre Channel, InfiniBand)
Semiconductor Characterization and Validation
PCI Express
Serial ATA
IEEE 1394
USB 2.0 (The P7350 is not recommended for USB 2.0 compliance testing)
RAMBUS
DDR
Disk Drive Design
The P7350 improves usability with variable spacing and solder-down capability, and a small form factor for ease of use on densely packed circuit boards with difficult-to-reach probe points. It employs the patented TekConnect® interface, which preserves signal integrity to 10 GHz and beyond to meet present and future bandwidth needs.
