新 6 GHz 向量信號產生器 在 桃园市, 台湾

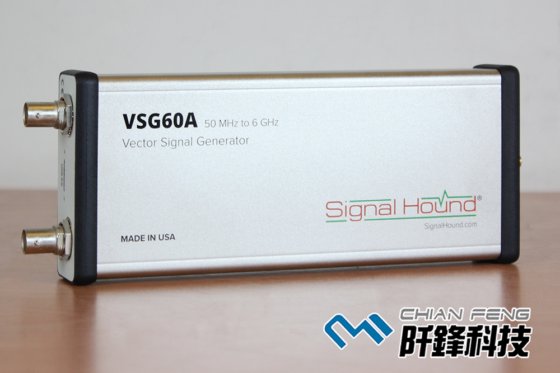

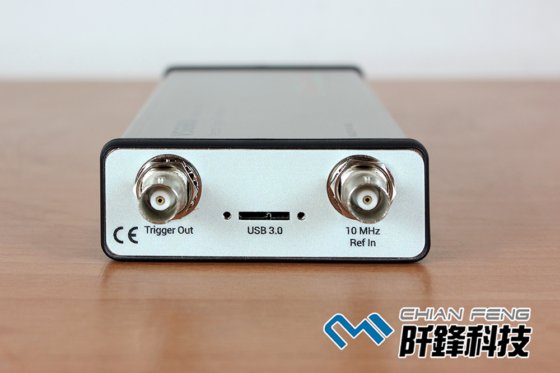

The VSG60A features a low phase noise, agile local oscillator with 200 µs switch time, enabling frequency hopping spread spectrum testing. A dual 14-bit DAC runs at 2x or 3x the I/Q symbol rate using digital oversampling to provide a flat, clean baseband; and a digitally adjustable internal VCTCXO ensures frequency errors are kept to a minimum over temperature, or an external 10 MHz input may be used for zero ppm frequency error. A trigger output is also available to synchronize your VSG60A with other test equipment.
Preprogrammed modulation types
CW AM, FM, Pulse, Multitone, Sweep, AWGN, FSK, GFSK, OOK, ASK, MSK, GMSK, BPSK, DBPSK, QPSK, DQPSK, Pi/4DQPSK, OQPSK, 8-PSK, 16-PSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM, Bluetooth LE, 802.11a/n
Digital modulation impairments
Channel, AWGN, I/Q Offset, Sample rate multiplier, Freq offset, Timebase multiplier
