新 NG CASTORE DT 在 米兰, 伦巴第, 意大利
新
Doubleclick to zoom in
请联系卖家咨询
更多照片和设备细节。
规格参数
- 新旧状况
- 新
- Models ng castore dt
- 1035
- Flow rate (max)
- 30 l/min105 l/min
- Outlet pressure (max)
- Inlet pressure – 0.5bar (7.2 psi)
- Nitrogen purity inlet pressure > 8 bar (116 psi)
- > 96% @ 10 l/min > 98% @ 5 l/min > 99.5% @ 3 l/min> 95% @ 35 l/min > 98% @ 15 l/min > 99.5% @ 9 l/min
- Dew point *1
- < -60°C (-76°F)
- Air inlet requirement
- ISO8573 – 1:2010 Class [1.3.1]
- Supply pressure (min; max)
- 5 bars (72.5 psi); 10bars (145 psi)
- Temperature (min; max)
- 1°C (34°F); 45°C (113°F)
- Led interface
- Standard
- Rs485
- Standard
- Rs232
- For service
- Supply rating
- 100-240Vac (±10%) 47..63 Hz – 1A
- Connection type
- IEC320-C14
- Nominal power (max)
- 25W (30VA)
- Fuse rating (5x20mm)
- 1A (250Vac – T)
- Net weight
- < 25 kg
- Dimensions (w x d x h)
- 36 x 65 *2 x 15 cm
- N2 outlet
- ¼” BSPP female
- Inlet
- ¼” BSPP female
- Temperature
- 5-35°C (41-95°F)
- Humidity (max, non condensing)
- 80% at 25°C (77°F)
- Noise
- < 35dB(A)
- Ip rating
- IP20
- Pollution degree rating
- 2 (with no aromatic compounds)
- Altitude
- < 2000m
- 产品编号
- 60322360
描述

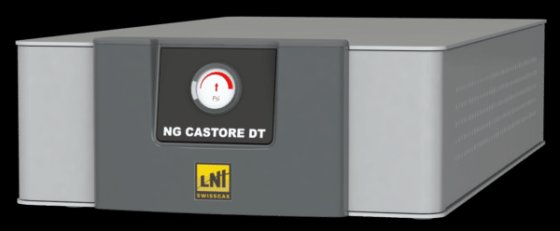

The NitroGen series NG CASTORE DT are Membrane Nitrogen Generators. They are engineered to transform standard compressed air into a safe, regulated supply of Nitrogen with a purity up to 99.5%.The NG CASTORE DT has been developed to meet specific requirements in terms of gas, flow, purity and pressure in LC-MS applications. It can be also used for the evaporation of solvents in samples being analysed.
