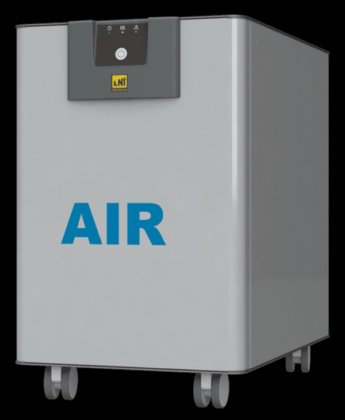

新 AG OFCAS 35 PLUS 在 米兰, 伦巴第, 意大利
新
Doubleclick to zoom in
请联系卖家咨询
更多照片和设备细节。
规格参数
- 新旧状况
- 新
- Model ag ofcas
- 35 PLUS
- Rated power (max)
- 0.75 kW
- Internal tank capacity
- 10 L
- Dimensions (w x d x h)
- 43 x 75 x 68 cm
- Net weight
- 90 kg
- Noise level
- < 52 dB(A)
- Operation control
- Electronic pressure control – Set point with hysteresis
- Air delivery (max) (1)
- 35 l/min @ 7Bar (101.5 psi)
- Dew point (2)
- < -20°C (<-4°F)
- Supply rating (3)
- 110-120Vac (±10%) @ 50Hz – 115-120Vac (±10%) @ 60 Hz or 220-240Vac (±10%) @ 50/60 Hz
- Connection type
- IEC320-C14
- Nominal power
- 750W
- Fuse rating (5x20mm)
- 10A (250Vac – T)
- Compressed air outlet
- 1/4” BSPP female fitting
- Working temperature
- 5-40°C (41-104°F)
- Storage temperature
- 1-50°C (34-122°F)
- Humidity (max, non condensing)
- 80% [5-40°C (41-104°F)]
- Heat value
- 2560
- Ip rating
- IP20
- Pollution degree rating
- 2 (with no aromatic compounds)
- Altitude
- < 2000m
- 产品编号
- 60322358
描述
The high quality of the materials combined with cutting-edge technology of the compressor unit, ensure reliability, professionalism and economy allowing continuous use, unthinkable in traditional direct-drive oil-free compressors.The AirGen OFCAS 35 PLUS is the ideal compressor to supply all Zero Air generators ZA FID and ZA TOTAL or the high purity Nitrogen generator NG EOLO.
