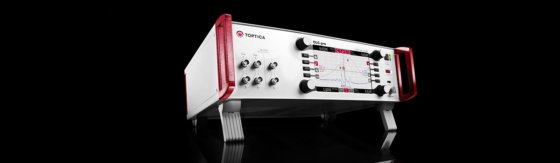

新 TOPTICA DLC pro：数字控制 在 慕尼黑, 巴伐利亚州, 德国
新
Doubleclick to zoom in
请联系卖家咨询
更多照片和设备细节。
规格参数
- 新旧状况
- 新
- Operator controls
- Touch Display, 10 push buttons, 4 knobs, 1 key switch
- Display
- 7 inch, 800 x 480 pixels, 262 k colors
- Touch panel
- Projective capacitive (PCT) with multi-touch capability
- Interfaces
- Ethernet and USB
- Max. laser current
- 2x 245 mA or 1x 490 mA (selectable)
- Max. laser voltage
- 7 V @ 360 mA, 5 V @ 490 mA
- Smallest current step
- 0.015 μA
- Current noise density
- 280 pA / sqrt(Hz) @ 1 kHz
- Low frequency current noise (0.1 hz ... 10 hz)
- < 50 nA p-p
- Temperature coefficient of laser current
- <3 ppm / K typ. after > 1 h warm-up
- Long-term stability of laser current
- < 100 ppm / sqrt(khrs) after > 1 h warm-up
- Modulation bandwidth (-3db, 45°)
- Between 15 kHz and 30 kHz (depending on laser diode)
- Achievable power stabilization bandwidth
- DL pro: 10 kHz, CTL: 4 kHz
- Max. tec current
- 3 A
- Max. tec voltage
- 3 V @ 3 A / 12 V @ 3 A
- Smallest set temperature step
- 50 μK
- Act. temperature noise (100 μhz ... 1 hz)
- < 300 μK p-p
- Repeatability of actual temperature
- < 0.001 K after > 1 h warm-up
- Temperature coeff. of actual temperature
- < 140 ppm K / K after > 1 h warm-up
- Piezo voltage range
- -1 V ... +140 V
- Max. piezo current (charge / decharge)
- 25 mA
- Smallest piezo voltage step
- 0.01 mV
- Voltage noise density
- 140 nV / sqrt (Hz) @ 1 kHz
- Temperature coefficient of piezo voltage
- < 40 ppm / K
- Small signal bandwidth
- 3 kHz (0 load)
- Analog inputs (bnc)
- 2x (24 bit, DC .. 300 kHz)
- Input range, impedance
- -4 V ... + 4V, 10 kOhm
- Analog outputs (bnc)
- 2x (16 bits, DC .. 300 kHz)
- Output range, impedance
- -4 V ... + 4V (no load), 50 Ohm
- Digital inputs**
- 4x TTL, 10 kOhm, Sub-HD 15-pin
- Digital outputs**
- 4x TTL, 50 kOhm, Sub-HD 15-pin
- Voltage requirements
- 100 - 240 V~, 50 / 60 Hz
- Power requirements
- 250 W max., typ. 35 W, no active cooling fans
- Size (h x w x d)
- 131 mm (+67 mm) x 184 mm x 286 mm
- Weight
- 8.0 kg (with MC, CC-500, PC, TC)
- Operating temperature
- 5 °C ... 40 °C
- Transport temperature
- 0 °C ... 40 °C
- Relative humidity
- 80 % for up to 31 °C, decr. lin. to 50 % at 40 °C
- Number of possible modules
- 2
- Supported modules
- PDD 110, FALC 110, mFALC 110, DigiLock 110
- Power supply
- 90 - 264 VAC (47 - 63 Hz), external, automatic mains voltage detection
- 2.5
- 03/2022
- 2.4
- 02/2021
- 2.3
- 10/2020
- 2.2
- 07/2020
- 2.1
- 06/2020
- 2.0
- 12/2018
- 1.9
- 08/2018
- 1.8
- 04/2018
- 1.7
- 01/2018
- 1.6
- 04/2017
- 1.5
- 09/2016
- 1.4
- 03/2016
- 1.3
- 06/2015
- 1.2
- 11/2014
- 1.1
- 09/2014
- 1.0
- 02/2014
- 子类别
- 可调谐半导体激光器
- 产品编号
- 60022239
描述
如需了解更多信息，请联系卖家。
