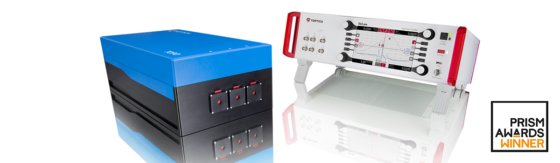

新 TOPTICA TOPO 在 慕尼黑, 巴伐利亚州, 德国
新
Doubleclick to zoom in
请联系卖家咨询
更多照片和设备细节。
规格参数
- 新旧状况
- 新
- Dlc topo
- Signal
- Coarse tuning range (standard system)
- 1.45 - 2.07 µm 4830 - 6900 cm-1
- Coarse tuning range (high power system)
- 1.43 - 2.07 µm 4830 - 7000 cm-1
- Mode hop free tuning range
- --
- Linewidth
- < 100 kHz < 1x10-5 cm-1
- Output power (standard system)
- > 10 mW at > 1.45 µm > 2 W at > 1.55 µm > 3 W peak
- Output power (high power system)
- > 10 mW at > 1.43 µm > 4 W at > 1.60 µm > 5 W peak
- Frequency modulation and lock
- PZT modulation
- Beam quality factor m2
- < 1.2 at < 3.6 µm
- Control interfaces
- DLC pro touchscreen, PC software, Ethernet, USB, analog remote control
- Warm-up time
- 30 min. typ.
- Dimensions seed laser head (h x w x d)
- 55 x 130 x 165 mm
- Dimensions opo head (h x w x d)
- 150 x 240 x 465 mm
- Dimensions fiber amplifier (h x w x d)
- 133 x 482 x 438 mm
- Dimensions control unit (h x w x d)
- 154 x 450 x 348 mm
- Power consumption
- Typ. < 250 W
- Pc interface
- Ethernet, USB, analog control
- Environment temperature
- 15 - 30 °C (operating), 0 - 40 °C (storage and transport)
- Environment humidity
- non-condensing
- Narrow linewidth
- The optical spectrum of the idler output is a convolution of the seed laser and signal spectra. The standard TOPO uses the DLC DFB pro as its seed, with 2 MHz linewidth. An alternate seed option is the DLC CTL 1050, which has < 10 kHz linewidth. This results in an idler linewidth of < 100 kHz.
- Fiber coupling (fiberdock)
- TOPTICA’s patented fiber coupler provides highest single-mode fiber-coupling efficiencies, easy alignment and at the same time highest stability. With this option, fiber coupling is added TOPO signal and idler probe outputs for convenient power and wavelength monitoring. TOPTICA additionally offers a wide range of single-mode and polarization-maintaining fibers, including fiber-optic beam splitters.
- Laser locking electronics
- A broad variety of electronic locking modules is available for frequency stabilization.
- 子类别
- 可调谐半导体激光器
- 产品编号
- 60022237
描述
1.45 - 4.0 µm (2500 - 6900 cm-1) Narrow linewidth: 2 MHz (1·10-4 cm-1) Hands-free motorized tuning 300 GHz (10 cm-1) mode-hop-free tuning range Easy all-digital DLC pro control Ease of use and reliable performance make this CW OPO the right choice for challenging applications: The TOPO can be applied to spectroscopy of molecular stretch vibrations for combustion analysis, trace gas detection, and ultracold molecular quantum technology. Its narrow linewidth and stability combined with TOPTICA’s locking electronics make it an ideal source for sensitive techniques like cavity ring-down spectroscopy and NICE-OHMS. In recent years, mid-infrared photonics devices have emerged as new platforms for gas detection, nonlinear frequency conversion, and mid-infrared frequency comb generation.
