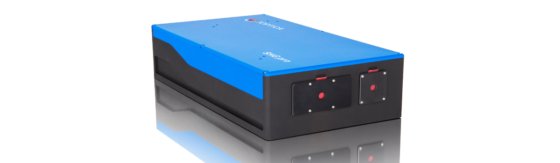

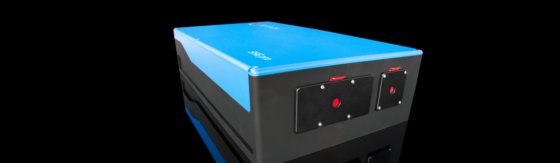

新 TOPTICA SHG pro 在 慕尼黑, 巴伐利亚州, 德国
新
Doubleclick to zoom in
请联系卖家咨询
更多照片和设备细节。
规格参数
- 新旧状况
- 新
- Wavelength range*
- 410 .. 1600 nm → 205 .. 800 nm
- Optical conversion efficiency**
- Up to 70% with an ideal fundamental source and higher powers.
- Beam quality
- Near-diffraction limited
- Beam diameter
- 1...3 mm
- Continuous scan range
- > 80 GHz @ 400 nm
- Polarization
- Linear, > 100 : 1
- Residual infrared
- < 1% typ. (< 0.1% with extra filter)
- Locking scheme
- Pound-Drever-Hall with automatic relock
- Output power noise
- < 3% typ., depending on fundamental laser
- Shg cavity leak rate
- < 1E-3 mbar l/s
- Control electronics
- DLC pro
- Warm-up time
- < 5 min typ.
- Dimensions laser head (h x w x d)
- 295 x 127 x 470 mm³
- Weight laser
- Up to 10 kg
- Dimensions control unit
- Single stage 19" rack
- Weight control unit
- Up to 15 kg
- Operating voltage
- 100 .. 120 V / 220 .. 240 V AC, 50 .. 60 Hz (auto detect)
- Power consumption
- < 50 W
- Pc interface
- Ethernet, USB, analog control
- Environment temperature
- 15 - 30 °C (operating), 0 - 40 °C (storage and transport)
- Environment humidity
- Non-condensing
- 子类别
- 可调谐半导体激光器
- 产品编号
- 60022222
描述
Compact module for resonant frequency doubling Best cw conversion rates Wavelengths: 205 .. 800 nm, linewidth dependant on seed laser Highest stability and Ease of Use: pro technology For Ti:Sapphire, dye, gas, fiber and diode lasers The SHG pro is the device of choice, if existing lasers are to be frequency doubled. Designed in TOPTICA’s pro technology, it unites highly stable performance and convenient operation. Mirror and crystal holders can be adjusted without opening the resonator cover. A wide range of non-linear crystals covers SHG wavelengths from 205 to 800 nm. Together with the customer TOPTICA will find the optimum parameters for frequency doubling. A professional installation by TOPTICA ensures the specified performance is achieved.
