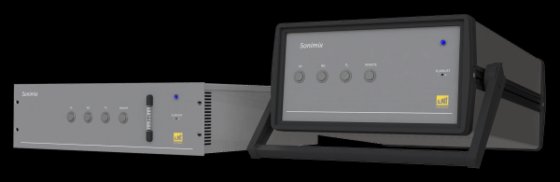

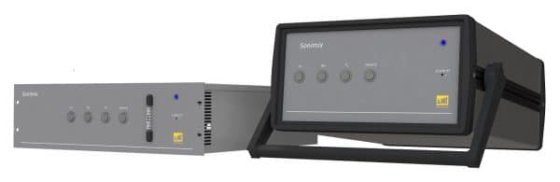

新 SONIMIX 2130 在 米兰, 伦巴第, 意大利
新
Doubleclick to zoom in
请联系卖家咨询
更多照片和设备细节。
规格参数
- 新旧状况
- 新
- Models sx 2130
- 6800 50 0016800 50 0026800 50 003
- Concentration
- LowHigh
- No2 & o3 generation
- 15 to 50 ppm30 to 100 ppm300 to 1000 ppm
- Inlet pressure
- 2,5 to 4 bar rel.(37 to 58 PSI)
- Outlet pressure
- Up to 910mbar rel. (13 PSI)
- Gas dilution
- 90% of the NO cylinder
- Stabilization time
- NO: < 1 min O3 and NO2 : < 10 minNO: < 1 min O3 and NO2 : < 10 min
- Flow (air line)
- 0,2 Nl/min
- Flow (no line)
- 2 Nl/min
- Connections
- 1/4’’ Swagelok
- Materials in contact with gases
- NO, O3, NO2: Stainless steel, Teflon, Gold, Silver Air: Stainless steel, Aluminium, Silver, Brass
- Alimentation
- 230V / 50-60 HZ 115V / 60HZ
- 产品编号
- 59850345
描述
The Sonimix 2130 NOx converter tester has been designed to generate a stable NO2 concentration with a small reaction time. It is based on the sonic nozzles technology (ISO 6145-6 technology) and high stability pressure regulators. The NOx converter tester is often used together with a multi-steps gas divider also based on sonic nozzles and high precision pressure regulators. In order to validate NOx measurements, the efficiency of the NO2 converter must be higher than 90 %, it is therefore very important to check easily and precisely the efficiency of the NO2 converter. The SONIMIX 2130 converter tester is based on the process known under the name of Gaseous Phase Titration
