新 SONIMIX 3012/3022 在 米兰, 伦巴第, 意大利
新
Doubleclick to zoom in
请联系卖家咨询
更多照片和设备细节。
规格参数
- 新旧状况
- 新
- Models sonimix 3012/3022
- Sx 3012/3022Sx 3012/3022 010
- Dilution point
- 310
- Dilution range
- 1/166, 1/250, 1/500 (100, 200, 300 ppb with 50 ppm at inlet)1/200 to 1/2000 or 1/100 to 1/1000
- Dilution principle
- Sonic nozzle
- Dilution gas line flow accuracy
- 0,6% relative
- Repeatability on flow
- Better than +/- 2.5 ppb (at 250 ppb O3)
- Warm up time
- < 45 min
- Stabilization time
- 3 min
- Operating temperature
- 15°C – 40°C
- Dimensions
- 19″ 3HE/84 TE , 500mm deep portable casing in option
- Net weight
- 20 Kg
- Zero air
- Requires high grade zero air from internal zero air generator or from cylinder DP < -40°C
- Carrier gas
- NO, NO2, O3, SO2 < 1ppb BTEX < 1 ppb CH4 < 50 ppb & CO HCnm < 50 ppb if catalysis oven is installed
- Dilution gas
- Requires High concentrated premixtures SO2 in Air – NO in N2 – CO in Air – HC or BTX in Air
- Pressure
- 3 ± 0.3 bar rel
- Fittings
- 1/4’’ and 1/8’’ Swagelok
- Flow
- About 3000 Nml/min, other values upon request
- O3 concentration
- 25 – 500 ppb, adjustable by software
- Accuracy
- Better than +/- 2 ppb from 25 to 200 ppb
- Key board and vfd display
- Standard
- Rs232
- Standard
- Power supply voltage
- 230V/50-60Hz 115V/60Hz 100V/50-60Hz
- Installed power (max)
- 65 – 150W
- 产品编号
- 59850338
描述

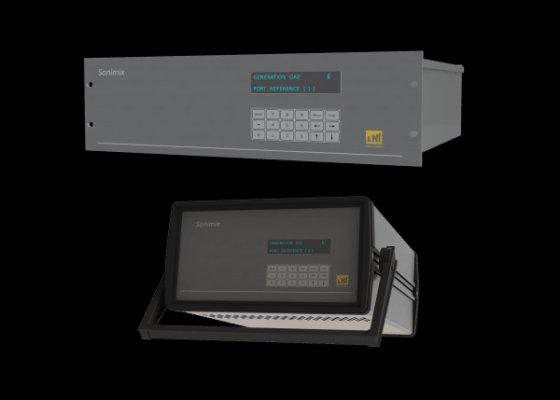

The multigas calibrator with GPT, ozone and self re-generable zero air generator, Sonimix 3012/3022, is an instrument designed to calibrate manually or by remote control up to 6 monitors installed in an air pollution monitoring station, such as SO2, HC, BTX, CO, NOx and O3.
The Sonimix 3012/3022 is equipped with
– an inlet for high concentration mixtures of diluted gases such as NO, NO2, SO2, CO, HC, BTX or mixtures of several compatible polluants in the same cylinder.
– a zero air generator composed of an internal compressor with self re-generable filters that removes moisture, O3, NOx, SO2, HC, BTX and optionally CO and CH4.
– a binary gas dilutor with two inlets (diluted gas and air), based on sonic nozzles (ISO 6145-6 standard)
The ozone generator is regulated by UV-light feedback and compensated from the atmospheric pressure and ambient temperature variations, with alarm on the drift of UV-light as well as the circuits for the GPT.
