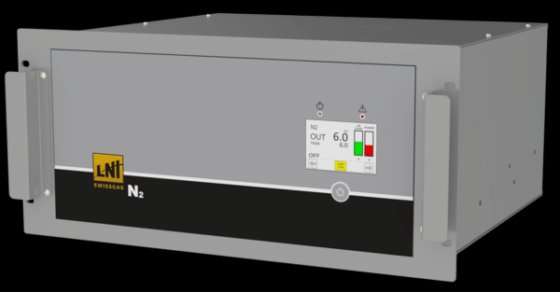

新 NG RACK 7U 在 米兰, 伦巴第, 意大利
新
Doubleclick to zoom in
请联系卖家咨询
更多照片和设备细节。
规格参数
- 新旧状况
- 新
- Models ng rack 7u
- 2000
- Flow rate (max)
- 20 l/min
- Outlet pressure (min)
- 1.0 bar (14.5 psi)
- Outlet pressure (max)
- Inlet pressure – 2.0 bar (29 psi)
- Nitrogen purity (1)
- > 99.9999%
- Outlet dew-point (2)
- <-60°C (-76°F)
- Hydrocarbon content (3)
- <0.05 ppm (with option 6920.31.010)
- Air inlet requirement
- ISO 8573-1:2010 Class [1:3:1]
- Min / max supply pressure
- 6.5 bar (95 psi) / 10 bar (145 psi)
- Min / max temperature
- 5°C (41°F) / 35°C(95°F)
- Lcd with touch screen
- Standard
- Rs232
- Standard
- Rs485
- Standard
- Supply rating (min-max)
- 100-240Vac (±10%) 50/60 Hz
- Connection type
- IEC320-C14
- Nominal power (max)
- 320W
- Fuse rating (5x20mm)
- 4A (250Vac – T)
- Net weight
- < 40 kg
- Internal tank capacity
- 5L
- Dimensions
- Standard 19” Rack 5U – deep 55 cm
- Outlet port
- 1/8″ BSPP female
- Inlet port
- 1/8″ BSPP female
- Temperature
- 5-35°C (41-95°F)
- Humidity (max, non condensing)
- 80% [5-35°C (41-95°F)]
- Noise
- < 45dB(A)
- Ip rating
- IP20
- Pollution degree rating
- 2 (with no aromatic compounds)
- Altitude
- < 2000m
- 产品编号
- 59850298
描述
The High purity NitroGen series NG RACK 7U produce laboratory high grade nitrogen for most of the laboratory applications and equipments. Designed with safety and convenience in mind, this system generates purified nitrogen, eliminating the need for inconvenient cumbersome high-pressure gas cylinders.The NG RACK 7U removes oxygen from air to less than 1 ppm and HC pollutants to less than 0.05ppm (if the optional scrubber is installed). This generator needs an external compressed air source and it is able to produce a flow of 2000 cc/minThe Ultra Pure Nitrogen is mainly used to feed ICP, ELSD, GC, FTIR and is ideal as nitrogen gas supply for all kind of Laboratory and Chromatography applications.
