新 HGA RACK 2U PRO (SX 3080) 在 米兰, 伦巴第, 意大利
新
Doubleclick to zoom in
请联系卖家咨询
更多照片和设备细节。
规格参数
- 新旧状况
- 新
- Models hga 2u pro
- 100160250350600
- Electrolytic cell
- PEM technology
- Drying system
- PSA (Pressure Swing Adsorption)
- H2 purity
- >99.99999% 1
- Outlet pressure
- 12 bar (174 psi) / 16 bar (232 psi) (optional)
- H2 flow-rate cc/min (max)
- 100160250350600
- Dimensions
- Standard 19 inch 2U RACK (48 cm deep)
- Net weight (no water in tank)
- 18 kg
- Rs485/usb
- Standard
- Lan
- Optional
- Parallel mode
- Ready on board
- Automatic tank refill
- Standard
- Quality
- Deionized, ASTM II, <0.1uS
- Supply pressure (min, max)
- 0 bars (0 psi), 0.5 bar (7.25 psi)
- Internal tank capacity
- 0.3 l
- Type of connection
- IEC 320-C14
- Power supply voltage
- 100-240 Vac (±10%) 50/60 Hz
- Nominal power (max)
- 350W500W
- Fuse rating (5x 20 mm)
- 4A (250VAC – T)
- Hydrogen outlet
- 1/8” compression fitting
- Water (inlet, drain)
- Quick release push-in fitting
- Inlet pressure (max)
- 8 bars (116 psi)
- Thc (inlet air)
- 100ppm
- Outlet flow rate (max)
- 2000 cc/min
- Outlet pressure (max)
- Inlet pressure – 0.5 bars (8 psi) at maximum flow
- Thc (zeroair outlet)
- <0.1ppm
- Inlet, outlet ports
- 1/8″ BSPP female
- 产品编号
- 59850297
描述

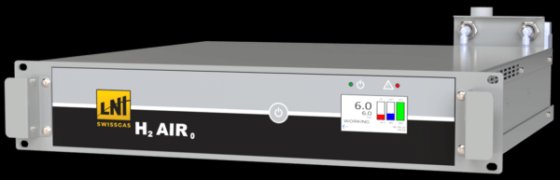

The HydroGen series HGA RACK 19” 2U PRO is able to generate up to 600 cc/min Hydrogen with purity better than 99.99999% and pressure up to 16 bar (232 PSI). An AirGen output can deliver hydrocarbon free pure Air with a flow up to 2000 cc/min. The HGA RACK 19 inch 2U PRO includes an electrolytic cell with polymeric membrane (PEM) using distilled water. The two-column PSA drying system with automatic regeneration ensures the maximum grade of hydrogen purity, and is completely maintenance-free.
The HGA RACK 19 inch 2U PRO is the ideal Hydrogen and Air Generator for all GC-FID detectors. The on-board CPU constantly controls the operating parameters to guarantee full safety. The touch-screen LCD interface provides simple and user-friendly management of all functions on the unit.
