新 HGA ST BASIC 在 米兰, 伦巴第, 意大利
新
Doubleclick to zoom in
请联系卖家咨询
更多照片和设备细节。
规格参数
- 新旧状况
- 新
- Models hga st basic
- 120160250350600
- Electrolytic cell
- PEM technology
- Drying system
- Static dryer
- H2 purity
- >99.9999% 1
- Outlet pressure
- 10 bar (145 psi)
- H2 flow-rate cc/min (max)
- 120160250350600
- Dimensions (wxhxd)
- 9.5 x 44 x 48 cm
- Net weight (no water in tank)
- 21 kg
- Rs485/usb
- Standard
- Lan
- Optional
- Parallel mode
- Ready on board
- Automatic tank refill
- Standard
- Quality
- Deionized, ASTM II, <0.1uS
- Supply pressure (min, max)
- 0 bars (0 psi), 0.5 bar (7.25 psi)
- Internal tank capacity
- 0.3 l
- Type of connection
- IEC 320-C14
- Power supply voltage
- 100-240 Vac (±10%) 50/60 Hz
- Nominal power (max)
- 350W500W
- Fuse rating (5x 20 mm)
- 4A (250VAC – T)
- Hydrogen outlet
- 1/8” compression fitting
- Water (inlet, drain)
- Quick release push-in fitting
- Inlet pressure (max)
- 8 bar (116 psi)
- Max thc (inlet air)
- 100ppm
- Outlet flow rate (max)
- 2000 cc/min
- Outlet pressure (max)
- Inlet pressure – 0.5 bar (8 psi) at maximum flow
- Thc (zeroair outlet)
- <0.1ppm
- Inlet, outlet ports
- 1/8″ BSPP female
- 产品编号
- 59850296
描述

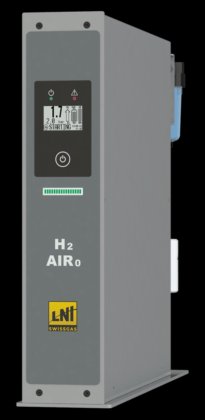

The HydroGen series HGA ST BASIC is able to generate up to 600 cc/min of Hydrogen with purity better than 99.9999% and pressure up to 10 bar (145 psi). An AirGen output can deliver hydrocarbon free pure Air with a flow up to 2000 cc/min. The HGA ST BASIC includes a new long life multilayer electrolytic cell with polymeric membrane (PEM) using distilled water. No acid or alkaline solutions are used.
The innovative drying system ensures the maximum grade of hydrogen purity, protects the GC thanks to its innovative humidity safe guard, HGA ST BASIC is completely maintenance-free and allows continuous operation, 24 hours a day.
The on-board CPU automatically checks for internal leaks and constantly controls the operating parameters to guarantee full safety. Up to 20 units can be connected in parallel mode using an external control box.
The touch-screen LCD interface provides simple and user-friendly management of all functions on the unit.
