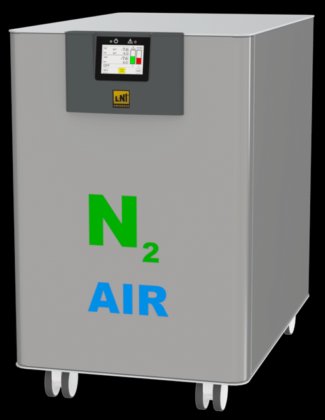

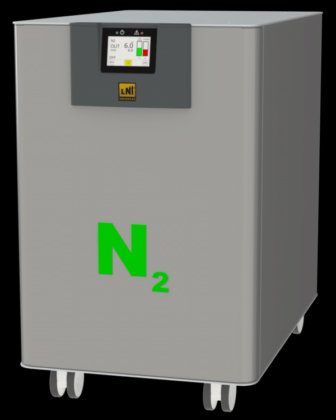

新 NG SIRIO NC 在 米兰, 伦巴第, 意大利
新
Doubleclick to zoom in
请联系卖家咨询
更多照片和设备细节。
规格参数
- 新旧状况
- 新
- Models ng sirio nc
- 150030005000
- Flow rate (max)
- 15 l/min30 l/min45 l/min
- Outlet pressure (max)
- 5.5 bar (80 psi)
- Nitrogen purity (1)
- > 99.9999%> 99.95%
- Outlet dew-point (2)
- <-60°C (-76°F)
- Outlet particulate
- 0.01 micron
- Air inlet requirement
- ISO 8573-1:2010 Class [1:3:1]
- Min supply pressure (3)
- 6.5 bar (94.3 psi)
- Max supply pressure
- 10 bar (145 psi)
- Temperature (min / max)
- 1°C (34°F) / 35°C (95°F)
- Rs485
- Standard
- Rs232
- Standard
- Supply rating (min-max)
- 100-240 Vac (±10%) 50/60 Hz
- Connection type
- IEC320-C14
- Nominal power (max)
- 320 W
- Fuse rating (5x20mm)
- 4A (250 Vac – T)
- Net weight
- 80 kg
- Dimensions (w x d x h)
- 43 x 75 x 68 cm
- Inlet port
- 1/4” female BSPP
- Outlet port
- 1/4” female BSPP
- Working temperature
- 5-35°C (41-95°F)
- Storage temperature
- 1-50°C (34-122°F)
- Humidity (max, non condensing)
- 70% [5-35°C (41-95°F)]
- Noise
- < 48 dB(A)
- Ip rating
- IP20
- Pollution degree rating
- 2 (with no aromatic compounds)
- Altitude
- < 2000m
- 产品编号
- 59850295
描述
NG SIRIO NC produces laboratory high grade nitrogen for most of the laboratory applications and equipments. Designed with safety and convenience in mind, this system generates purified nitrogen, eliminating the need for inconvenient cumbersome high-pressure gas cylinders.The NG SIRIO NC removes oxygen from air to less than 1 ppm and HC pollutants to less than 0.1ppm (if the optional CH4 scrubber is installed).The Ultra Pure Nitrogen is mainly used to feed ICP, ELSD, GC, FTIR and is ideal as nitrogen gas supply for all kind of Laboratory and Chromatography applications.
