新 NG CASTORE PRO 350 在 米兰, 伦巴第, 意大利
新
Doubleclick to zoom in
请联系卖家咨询
更多照片和设备细节。
规格参数
- 新旧状况
- 新
- Models
- NG CASTORE PRO 350
- Flow rate (max)
- 880 l/min @ 350 l/min N2
- Outlet pressure
- Inlet pressure – 1.0 bar
- Nitrogen purity inlet pressure > 8 bar (116 psi)
- 96% .. 99.5% LCMS grade
- Dew point (1)
- < -60°C (-76°F)
- Air inlet requirement
- ISO 8573-1:2010 Class [1:3:1]
- Supply pressure (min; max)
- 5 bar (72.5 psi); 10bar (145 psi)
- Temperature (min; max)
- 1°C (34°F); 45°C (113°F)
- Lcd with touch screen
- Standard
- Rs485
- Standard
- Rs232
- For service
- Supply rating (min-max)
- 100-240Vac (±10%) 50/60 Hz
- Connection type
- IEC320-C14
- Nominal power
- 25W
- Fuse rating (5x20mm)
- 1A (250Vac – T)
- Net weight
- < 50 kg
- Dimensions (w x d x h)
- 35 x 34 x 145 cm
- N2 outlet port
- 1/2” BSPP female
- Inlet port
- 1/2″ BSPP female
- Drain port
- 1/4″ BSPP female
- Temperature
- 5-35°C (41-95°F)
- Humidity (max, non condensing)
- 80% [5-35°C (41-95°F)]
- Noise
- < 35dB(A) (no mechanical moving parts)
- Ip rating
- IP20
- Pollution degree rating
- 2 (with no aromatic compounds)
- Altitude
- < 2000m
- 产品编号
- 59850230
描述

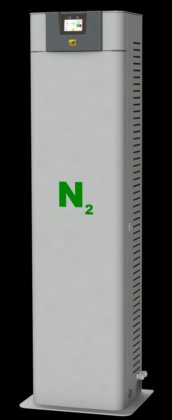

The NitroGen series NG CASTORE PRO 350 are Membrane Nitrogen Generators. They are engineered to transform standard compressed air into a safe, regulated supply of Nitrogen with a purity up to 99.5%.The exclusive electronic flow control allows to generate Nitrogen with a higher purity using a smaller volume of air which results in reduced energy costs and maintenance of any external compressor. Continuous control of the operating parameters allows to maintain the system at its maximum efficiency.The CASTORE PRO has been developed to meet specific requirements in term of gas, flow, purity and pressure in LC-MS applications. It can be used for the evaporation of solvents in samples being analysed.
