新 NG CASTORE XL iQ 在 米兰, 伦巴第, 意大利
新
Doubleclick to zoom in
请联系卖家咨询
更多照片和设备细节。
规格参数
- 新旧状况
- 新
- Models ng castore xl iq
- 204070
- 6920.70.20.1
- 6920.70.40.16920.70.70.1
- Flow rate (max)
- 20 l/min40 l/min70 l/min
- Outlet pressure (max)
- 8 Bar (116 psi)
- Nitrogen purity
- LCMS grade (up to 99.9%(1))
- Non-methane hydrocarbon content(2)
- < 1 ppm NMHC
- Particles
- < 0.01 μm
- Phthalates phthalate & bht
- free
- Nitrogen for collision cell(3)
- 200 cc/min @ 99.9999%(4) with option 6920.71.90
- Lcd with touch screen
- Standard
- Rs485
- Standard
- Rs232
- For service
- Power supply voltage (min-max)
- 220-240 Vac (±10%) 50/60 Hz
- Connection type
- IEC C20
- Rated power(max)
- 1.4 KW1.8 KW2.2 KW
- Net weight
- 175 kg175 kg175 kg
- Noise level
- < 45 dB< 50 dB
- Heat value (btu)
- 480061507510
- Dimensions (w x d x h)
- 59 x 92 x 73 cm
- N2 outlet port
- ¼” BSPP female (Fitting: Double ferrule compression fitting, tube 1/4”)
- N2 uhp outlet port
- ¼” BSPP female
- Drain port
- ¼” BSPP female
- Temperature
- 5-35°C (41-95°F)
- Humidity (max, non condensing)
- 80% [5-35°C (41-95°F)]
- Ip rating
- IP20
- Pollution degree rating
- 2 (with no aromatic compounds)
- 6920.70.20
- 6920.70.406920.70.70
- 产品编号
- 59850229
描述

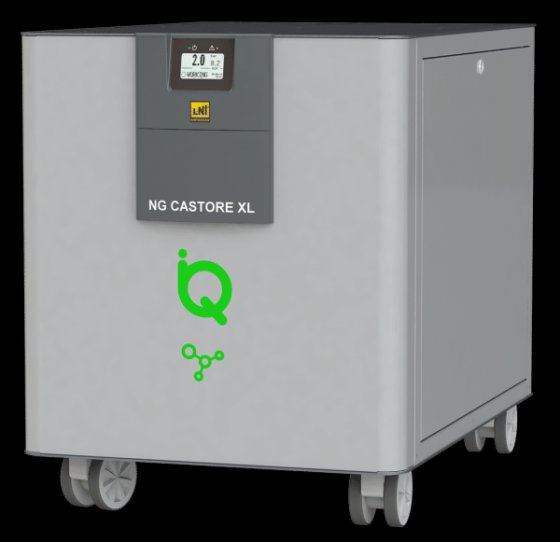

The NitroGen series NG CASTORE XL iQ use Membrane technology.
They are engineered to transform standard compressed air into a safe, regulated supply of Nitrogen up to 70 L/min with a purity up to 99.9%.
This NG series is equipped with a scroll built-in oil less compressor with inverter technology. The new iQ series is equipped with the innovative direct drive motor-compressor system that result in lower noise than the previous version.
The exclusive electronic flow control combined with the compressor control by the inverter allows to generate Nitrogen with a higher purity using a smaller volume at less pressure of air which results in reduced energy costs and increase the life time of the compressor. Continuous control of the operating parameters of Nitrogen allows to maintain the system at its maximum efficiency.
The CASTORE XL iQ has been developed to meet specific requirements in term of gas, flow, purity and pressure in LC-MS applications.
