新 BEAM 3.0 在 米兰, 伦巴第, 意大利
新
Doubleclick to zoom in
请联系卖家咨询
更多照片和设备细节。
规格参数
- 新旧状况
- 新
- Flow rate (max)
- 40 l/min
- Outlet pressure(max)
- 9 Bar
- Nitrogen purity*1
- < 500 ppm @ 10L/min
- Lcd with touch screen
- Standard
- Rs485
- Standard
- Rs232
- For service
- Wifi
- Option
- Supply voltage
- Single phase 220-240 Vac 50/60 Hz (100-115Vac 50/60 Hz optional)
- Connection type
- IEC C20
- Installation power (max)
- 1800W
- Dimensions
- 590 x 790 x 740 (mm)
- Net weight
- 135 kg (145 with 100-115Vac)
- Outlet port
- 1/4″ female BSPP (SWAGELOK compatible)
- Drain port
- 1/4″ female BSPP (SWAGELOK compatible)
- Temperature (min;max)
- 5-35°C (41-95°F)
- Humidity (max, non condensing)
- 80% at 25°C (77°F)
- Noise
- <60dB (A)
- Ip rating
- IP20
- Pollution degree rating
- 2 (with no aromatic compounds)
- 产品编号
- 59850185
描述

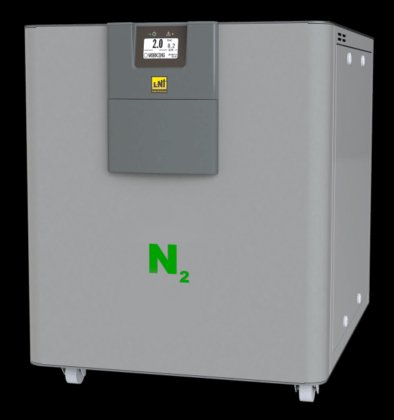

The BEAM 3.0 perform in 24/7 production process worldwide with utmost reliability. Even under the most challenging environments BEAM 3.0 guarantee frictionless industrial use for different applications (example: 3D Laser Printer / 3D Laser melting). The Generator produces a continuous flow of Nitrogen with Laser Grade. The BEAM 3.0 has been developed to meet specific requirements in term of gas, flow, purity and pressure for Laser applications. This generator is equipped with a scroll built-in oil less compressor with inverter technology.
The exclusive electronic flow control combined with the compressor control by the inverter allows to generate Nitrogen with a higher purity using a smaller volume at less pressure of air which results in reduced energy costs and increase the life time of the compressor.LNI Swissgas recognizes the importance of having a safe, reliable and cost-effective supply of high reliable Nitrogen for Lasers.
