新 BEAM 3.1 在 米兰, 伦巴第, 意大利
新
Doubleclick to zoom in
请联系卖家咨询
更多照片和设备细节。
规格参数
- 新旧状况
- 新
- Model beam 3.1
- 8,0 bar
- Flow rate (max)
- 2200 l/min @ 500 l/min N2
- Outlet pressure (min;max)
- Inlet pressure – 0,5 bar
- Nitrogen purity
- 99,5%
- Air inlet requirement
- Particulate: <1 micron
- Supply pressure (min/max)
- 8,5 bar
- Temperature (min/max)
- 1°C (34°F) / 45°C (113°F)
- Lcd with touchscreen
- Standard
- Rs485
- Standard
- Rs232
- For service
- Supply rating
- 100-240Vax 50/60 Hz – 1A
- Connection type
- IEC320-C13
- Installation power
- 25W (30VA)
- Fuse rating
- 1A – 240 Vac (5x20mm)
- N2 outlet port
- 1/4″ BSPP female
- Air inlet port
- 1/4″ BSPP female
- Drain port
- 1/4″ BSPP female
- Temperature
- 5-35°C
- Humidity (max)
- 80% at 25°C (77°F) (non condensing)
- Noise
- No noise (no mechanical moving parts)
- Ip rating
- IP20
- Pollution degree rating
- 2 (with no aromatic compunds)
- Altitude
- < 2000m
- 产品编号
- 59850183
描述

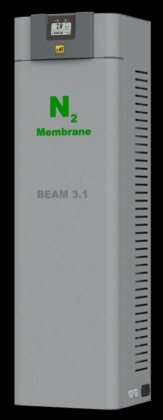

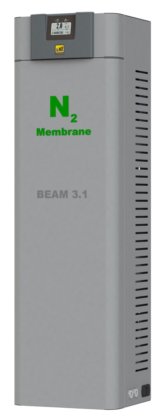

The BEAM 3.1 perform in 24/7 production process worldwide with utmost reliability. Even under the most challenging environments BEAM 3.1 guarantee frictionless industrial use for different applications (example: 3D Laser Printer / Powder Handling). The Generator produces a continuous flow of Nitrogen with Laser Grade. The BEAM 3.1 has been developed to meet specific requirements in term of gas, flow, purity and pressure for Laser applications. This generator is equipped with a high efficient membrane system.
The exclusive electronic flow control allows to generate Nitrogen with a higher purity using a smaller volume at less pressure of air which results in reduced energy costs..LNI Swissgas recognizes the importance of having a safe, reliable and cost-effective supply of high reliable Nitrogen for addition, providing flexibility to add or remove modules as your application requirements evolve over time.
