新 NG SIRIO 在 米兰, 伦巴第, 意大利
新
Doubleclick to zoom in
请联系卖家咨询
更多照片和设备细节。
规格参数
- 新旧状况
- 新
- Models
- NG SIRIO 1500NG SIRIO 3000NG SIRIO 5000NG SIRIO 5000 HPNG SIRIO 8000
- Flow rate (max) (1)
- 1500 cc/min3000 cc/min5000 cc/min5000 cc/min16 l/min8000 cc/min
- Outlet pressure (max)
- 5.5 bar (80 psi)5.5 bar (80 psi)5.5 bar (80 psi)8 bar (116 psi)6 bar (87 psi)5.5 bar (80 psi)
- Nitrogen purity (2)
- > 99.9999%> 99.9995%> 99.99%99.999%> 98%> 99.7%
- Outlet dew-point (3)
- <-60°C (-76°F)
- Outlet particulate
- 0.01 micron
- Rs485
- Standard
- Rs232
- Standard
- Supply rating (min-max) (4)
- 110-120Vac (±10%) @ 50Hz – 115-120Vac (±10%) @ 60 Hz or 230-240Vac (±10%) @ 50/60 Hz
- Connection type
- IEC320-C14
- Nominal power (max)
- 1000 W
- Fuse rating (5x20mm)
- 10A (250VAC – T)
- Net weight
- 90 kg
- Dimensions (w x d x h)
- 43 x 75 x 68 cm
- Outlet port
- 1/4” female BSPP
- Working temperature
- 5-35°C (41-95°F)
- Storage temperature
- 1-50°C (34-122°F)
- Humidity (max, non condensing)
- 70% [5-35°C (41-95°F)]
- Noise
- < 52 dB(A)
- Ip rating
- IP20
- Pollution degree rating
- 2 (with no aromatic compounds)
- Altitude
- < 2000m
- 产品编号
- 59850168
描述

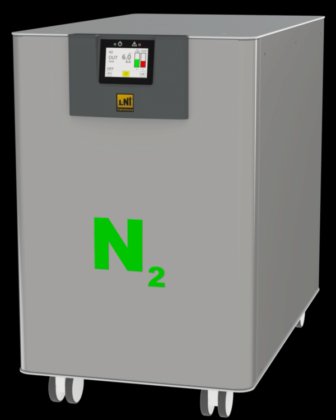

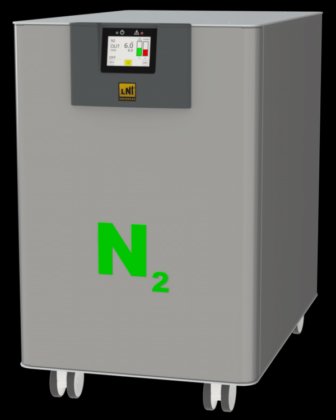

NG SIRIO produces laboratory high grade nitrogen for most of the laboratory applications and equipments. Designed with safety and convenience in mind, this system generates purified nitrogen, eliminating the need for inconvenient cumbersome high-pressure gas cylinders.
The NG SIRIO removes oxygen from air to less than 5 ppm and HC pollutants to less than 0.1ppm (if the optional scrubber is installed).
NG SIRIO is available with a smart low noise built-in pistons compressor, 100% oil-free.
The Ultra Pure Nitrogen is mainly used to feed ICP, ELSD, GC, FTIR and is ideal as nitrogen gas supply for all kind of Laboratory and Chromatography applications.
