新 NG RACK 5U 在 米兰, 伦巴第, 意大利
新
Doubleclick to zoom in
请联系卖家咨询
更多照片和设备细节。
规格参数
- 新旧状况
- 新
- Models ng rack 5u
- 6001000
- Flow rate (max)
- 12 l/min15 l/min
- Outlet pressure (min)
- 1.0 bar (14.5 psi)
- Outlet pressure (max)
- Inlet pressure – 2.0 bar (29 psi)
- Nitrogen purity (1)
- > 99.999%> 99.99%
- Outlet dew-point (2)
- <-60°C (-76°F)
- Hydrocarbon content (3)
- < 0.05 ppm
- Air inlet requirement
- ISO 8573-1:2010 Class [1:3:1]
- Supply pressure (min / max)
- 6.5 bar (95 psi) / 10 bar (145 psi)
- Temperature (min / max)
- 5°C (41°F) / 35°C (95°F)
- Lcd with touch screen
- Standard
- Rs232
- Standard
- Rs485
- Standard
- Supply rating (min-max)
- 100-240Vac (±10%) 50/60 Hz
- Connection type
- IEC320-C14
- Nominal power (max)
- 320W
- Fuse rating (5x20mm)
- 4A (240Vac – T)
- Net weight
- 27 kg
- Dimensions
- Standard 19” Rack 5U – deep 48 cm
- Outlet port
- 1/8″ BSPP female
- Inlet port
- 1/8″ BSPP female
- Temperature
- 5-35°C (41-95°F)
- Humidity (max, non condensing)
- 80% [5-35°C (41-95°F)]
- Noise
- < 35dB(A)
- Ip rating
- IP20
- Pollution degree rating
- 2 (with no aromatic compounds)
- Altitude
- < 2000m
- 产品编号
- 59850164
描述

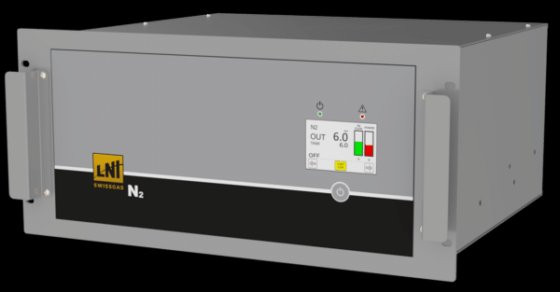

The High purity NitroGen series NG RACK 5U produce laboratory high grade nitrogen for most of the laboratory applications and equipments. Designed with safety and convenience in mind, this system generates purified nitrogen, eliminating the need for inconvenient cumbersome high-pressure gas cylinders.
The NG RACK 5U removes oxygen from air to less than 1 ppm and HC pollutants to less than 0.05ppm (if the optional scrubber is installed). The available flows are: 600 cc/min and 1000 cc/min.
The NG RACK 5U needs an external compressed air source.
The Ultra Pure Nitrogen is mainly used to feed ICP, ELSD, GC, FTIR and is ideal as nitrogen gas supply for all kind of Laboratory and Chromatography applications.
