新 NG CASTORE 3G 在 米兰, 伦巴第, 意大利
新
Doubleclick to zoom in
请联系卖家咨询
更多照片和设备细节。
规格参数
- 新旧状况
- 新
- Models ng castore 3g
- 10254560
- Flow rate (max)
- 110 l/min125 l/min190 l/min205 l/min
- Outlet pressure
- Up to 7.5 bars (108 psi)
- Nitrogen purity (inlet pressure > 8 bar)
- > 98.5% @ 10l/min > 99.5% @ 5l/min> 98.5% @ 25l/min > 99.5% @ 10l/min> 98.5% @ 45l/min > 99.5% @ 25l/min> 98.5% @ 60l/min > 99.5% @ 45l/min
- Air inlet requirement
- ISO 8573-1:2010 Class [2:4:1]
- Supply pressure (min; max)
- 8 bars (116 psi); 10 bars (145 psi)
- Temperature (min; max)
- 1°C (34°F) / 45°C (113°F)
- Net weight
- < 35 kg
- Dimensions (w x d x h)
- 28 x 35 x 120 cm
- Gas1 / gas2 port
- ¼” BSPP female
- Exhaust port
- ¼” BSPP female
- Curtain gas port
- ¼” BSPP female
- Air inlet port
- ¼” BSPP female
- Drain port
- ¼” BSPP female
- Temperature
- 5-35°C (41-95°F)
- Humidity (max)
- 80% at 25°C (77°F) (non condensing)
- Noise
- No noise (no mechanical moving parts)
- Ip rating
- IP20
- Pollution degree rating
- 2 (with no aromatic compounds)
- Altitude
- < 2000m
- 产品编号
- 59850148
描述

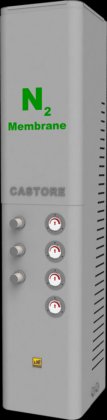

The NitroGen series NG CASTORE 3G are Membrane Nitrogen Generators. They are engineered to transform standard compressed air into a safe, regulated supply of Nitrogen with a purity up to 99.5%. An optional channel can provide up to 26 L/min of compressed, dry and regulated air.The NG CASTORE 3G with it’s dual Nitrogen and Air outlets has been developed to meet specific requirements in term of gas, flow, purity and pressure in LC-MS applications. It can be used for the evaporation of solvents in samples being analysed.
