新 NG CASTORE BASIC 150 – 180 -200 在 米兰, 伦巴第, 意大利
新
Doubleclick to zoom in
请联系卖家咨询
更多照片和设备细节。
规格参数
- 新旧状况
- 新
- Model ng castore basic
- 150180200
- Flow rate (max)
- 400 l/min @ 150 l/min N2 380 l/min @ 120 l/min N2540 l/min @ 180 l/min N2640 l/min @ 200 l/min N2
- Outlet pressure
- Air Inlet pressure – 0.5 barsAir Inlet pressure – 0.7 bars
- Nitrogen purity inlet pressure > 8 bar (116 psi)
- > 98.5% @ 150 l/min > 99% @ 120 l/min LCMS Grade> 98.5% @ 180 l/min LCMS Grade> 97.5% @ 200 l/min LCMS Grade
- Air inlet requirement
- ISO 8573-1:2010 Class [2:4:1]
- Supply pressure (min / max)
- 5 bars (72.5 psi) / 10 bars (145 psi)
- Temperature (min / max)
- 1°C (34°F) / 45°C(113°F)
- Net weight
- < 50 kg
- Dimensions (w x d x h)
- 35 x 34 x 120 cm
- N2 outlet port
- 1/4″ BSPP female
- Air inlet port
- 1/4″ BSPP female
- Drain port
- 1/4″ BSPP female
- Temperature
- 5-35°C (41-95°F)
- Humidity (max)
- 80% at 25°C (77°F) (non condensing)
- Noise
- No noise (no mechanical moving parts)
- Ip rating
- IP20
- Pollution degree rating
- 2 (with no aromatic compounds)
- Altitude
- < 2000m
- 产品编号
- 59850146
描述

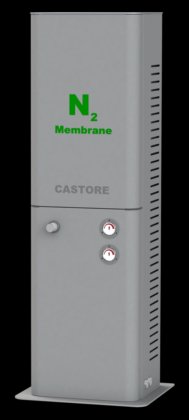

The NitroGen series NG CASTORE BASIC are Membrane Nitrogen Generators.
They are engineered to transform standard compressed air into a safe, regulated supply of Nitrogen with a purity up to 99%.
The NG CASTORE BASIC has been developed to meet specific requirements in terms of gas, flow, purity and pressure in LC-MS applications.
It can be also used for the evaporation of solvents in samples being analysed.
