新 NG CASTORE PRO HP 在 米兰, 伦巴第, 意大利
新
Doubleclick to zoom in
请联系卖家咨询
更多照片和设备细节。
规格参数
- 新旧状况
- 新
- Models ng castore pro hp
- 48
- Flow rate (max)
- 4 l/min8 l/min
- Outlet pressure (min / max)
- 2.0 bar / Inlet pressure – 0.5 bar
- Nitrogen purity (1) inlet pressure >= 8 bar (116psi)
- > 99.95 % @ 4 l/min Dew-point < -60°C (-76°F)> 99.95 % @ 8 l/min Dew-point < -40°C (-40°F)
- Air inlet requirement
- ISO 8573-1:2010 Class [2:4:1]
- Flow rate max (@7 bar)
- 40 L/min45 L/min
- Supply pressure (min / max)
- 5 bar (72.5 psi) / 10 bar (145 psi)
- Temperature (min / max)
- 1°C (34°F) / 45°C (113°F)
- Lcd with touch screen
- Standard
- Rs485
- Standard
- Rs232
- For service
- Supply rating (min-max)
- 100-240Vac (±10%) 50/60 Hz
- Connection type
- IEC320-C14
- Nominal power (max)
- 25W (30VA)
- Fuse rating (5x20mm)
- 1A (250Vac – T)
- Net weight
- < 35 kg
- Dimensions (w x d x h)
- 28 x 32 x 120 cm
- N2 outlet port
- ¼” BSPP female
- Inlet port
- ¼” BSPP female
- Drain port
- ¼” BSPP female
- Temperature
- 5-35°C (41-95°F)
- Humidity (max, non condensing)
- 80% [5-35°C (41-95°F)]
- Noise
- < 35dB(A)
- Ip rating
- IP20
- Pollution degree rating
- 2 (with no aromatic compounds)
- Altitude
- < 2000m
- 产品编号
- 59850127
描述

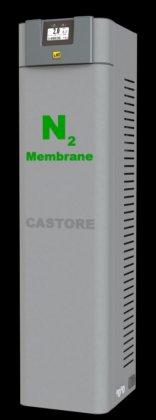

The NitroGen series CASTORE PRO HP are Membrane Nitrogen Generators. They are engineered to transform standard compressed air into a safe, regulated supply of Nitrogen with a purity greater than 99.5%.
The exclusive electronic flow control allows to generate Nitrogen with a higher purity using a smaller volume of air which results in reduced energy costs and maintenance of any external compressor. Continuous control of the operating parameters allows to maintain the system at its maximum efficiency.
The CASTORE PRO HP has been developed to meet specific requirements in term of gas, flow, purity and pressure for ELSD, TOC, ICP, DSC/TGA and other applications. It can be used for the evaporation of solvents in samples being analysed.
