新 NG EOLO 在 米兰, 伦巴第, 意大利
新
Doubleclick to zoom in
请联系卖家咨询
更多照片和设备细节。
规格参数
- 新旧状况
- 新
- Models ng eolo
- 250500750100013004000
- Flow rate (max)
- 6 L/min8 L/min10 L/min14 L/min20 L/min25 L/min
- Outlet pressure (max)
- Air Inlet pressure – 2 bar (29 psi)
- Nitrogen purity (1)
- > 99.9999%> 99.9999%> 99.999%> 99.995% > 99.9995% @ 1000 cc/min> 99.0%
- Outlet dew-point (2)
- <-60°C (-76°F)
- Outlet particulate
- 0.01 micron
- Air inlet requirement
- ISO 8573-1:2010 Class [1:3:1]
- Supply pressure (min-max)
- 6.5 bar (95 psi) – 10 bar (145 psi)
- Recommended temperature
- < 30°C (86°F)
- Rs485
- Standard
- Rs232
- Standard
- Supply rating (min-max)
- 100-240Vac (±10%) 50/60 Hz
- Connection type
- IEC320-C14
- Nominal power (max)
- 350 W
- Fuse rating (5x20mm)
- 4A (250 Vac – T)
- Net weight
- < 25 kg
- Dimensions (w x d x h)
- 27 x 48 x 28 cm
- Outlet port
- 1/8” female BSPP
- Inlet port
- 1/8” female BSPP
- Working temperature
- 5-40°C (41-104°F)
- Storage temperature
- 1-50°C (34-122°F)
- Humidity (max, non condensing)
- 70% [5-40°C (41-104°F)]
- Noise
- < 35 dB(A)
- Ip rating
- IP20
- Pollution degree rating
- 2 (with no aromatic compounds)
- Altitude
- < 2000m
- 产品编号
- 59850121
描述

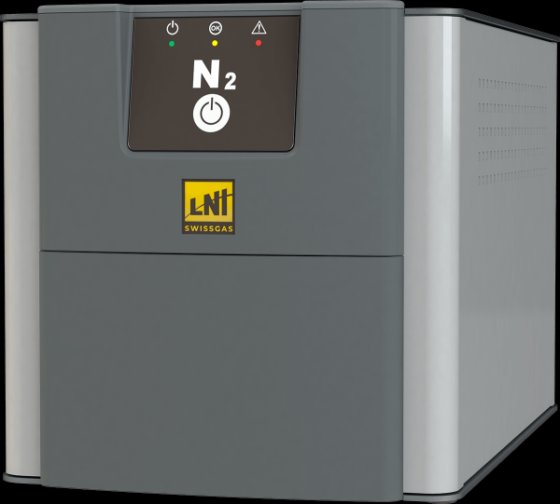

The High purity NitroGen series NG EOLO produce laboratory high grade nitrogen for most of the laboratory applications and equipments.
Designed with safety and convenience in mind, this system generates purified nitrogen, eliminating the need for inconvenient cumbersome high-pressure gas cylinders.
The NG EOLO, once connected to an external source of compressed air, removes oxygen from air to less than 1 ppm.
The typical flows are: 250, 500, 750, 1000, 1300 and 4000 cc/min.
The Ultra Pure Nitrogen is mainly used to feed ICP, ELSD, GC, FTIR and is ideal as nitrogen gas supply for all kind of Laboratory and Chromatography applications.
