新 NG EOLO XL / ZNG EOLO XL 在 米兰, 伦巴第, 意大利
新
Doubleclick to zoom in
请联系卖家咨询
更多照片和设备细节。
规格参数
- 新旧状况
- 新
- Models ng eolo xl
- 5101618Z – 5Z – 10Z – 18
- Flow rate (max)
- 120 l/min
- Outlet pressure (max)
- Air Inlet pressure – 2 bar (29 psi)
- Nitrogen purity (1)
- 99.9999% @ 5 l/min99.9999% @ 10 l/min99.9995% @ 16 l/min 99.99% @25L/min 99.9% @30 l/min(2)99.999% @ 18 l/min 99.99% @30 l/min 99.9% @ 35 l/min(2)99.9999% @ 5 l/min99.9995% @ 10 l/min99.9995% @ 18 l/min 99.995% @30 l/min
- Outlet dew-point (3)
- <-50°C (-58°F)
- Outlet particulate
- 0.01 micron
- Hydrocarbon content
- –< 0.1 ppm (in series ZNG)
- Air inlet requirement
- ISO 8573-1:2010 Class [1:3:1]
- Supply pressure (min-max)
- 6.5 bar (95 psi) – 10 bar (145 psi) *4
- Recommended temperature
- < 30°C (86°F)
- Lcd with touch-screen
- Standard
- Rs485
- Standard
- Rs232
- Standard
- Digital i/o
- Standard
- Supply rating (min-max)
- 100-240Vac (±10%) 50/60 Hz
- Connection type
- IEC320-C14
- Nominal power (max)
- 320W
- Fuse rating (5x20mm)
- 4A (250VAC – T)
- Net weight
- 150 kg
- Dimensions (w x d x h)
- 50 x 56 x 120 cm
- Outlet filter port
- 1/8” female BSPP
- Inlet filter port
- 1/4” female BSPP
- Drain port
- Quick fitting for tube 8mm
- Working temperature
- 5-40°C (41-104°F)
- Storage temperature
- 1-50°C (34-122°F)
- Humidity (max, non condensing)
- 70% [5-40°C (41-104°F)]
- Noise
- < 35dB(A)
- Ip rating
- IP20
- Pollution degree rating
- 2 (with no aromatic compounds)
- Altitude
- < 2000m
- Models
- NG EOLO XL 40L
- Nitrogen purity *1
- 99.9% @ 40 l/min *2
- Outlet dew-point *3
- <-50°C (-58°F)
- 产品编号
- 59850120
描述

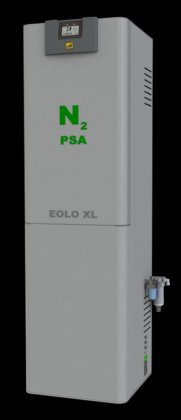

The NG EOLO XL Ultra High Purity Nitrogen Generators are engineered to transform standard compressed air into a safe regulated supply of Nitrogen with a purity up to 99.9995%.
They are equipped with columns containing carbon molecular sieve that remove the oxygen, some hydrocarbons, moisture and carbon dioxide and subsequently release only ultra high pure Nitrogen gas.
The ZNG EOLO XL series is also equipped with a catalyst module to remove hydrocarbons (<0.1ppm).
Exclusive electronic flow control that allows to generate Nitrogen with higher purity using a smaller volume of air and consequent reducing energy costs and the maintenance of external compressor.
Continuous control of the operating parameters to maintain the system at its maximum efficiency.
