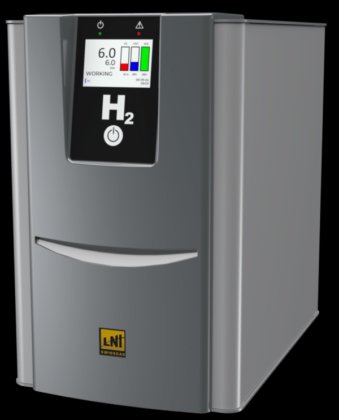

新 ZA TOTAL 在 米兰, 伦巴第, 意大利
新
Doubleclick to zoom in
请联系卖家咨询
更多照片和设备细节。
规格参数
- 新旧状况
- 新
- Models za total
- 1500300060001500030000
- Flow rate (max)
- 1.5 l/min3.0 l/min6.0 l/m15.0 l/min30.0 l/min
- Outlet pressure (min)
- 2 bar
- Outlet pressure (max)
- Inlet pressure – 1 bar (14.5 psi)
- Total hydrocarbon content
- < 0.05ppm
- Total co nox so2
- < 0.05ppm
- Total co2
- < 5 ppm
- Dew-point *1
- < -75°C (-103°F)< -70°C (-94°F)
- Air inlet requirement
- ISO 8573-1:2010 Class [2:3:1]
- Max inlet hydrocarbon content
- 100ppm
- Min supply pressure
- 6 bar (87psi) *2
- Max supply pressure
- 9 bar (130 psi)
- Average flow (impulsive)
- 8 l/min10 l/min13 l/min30 l/min45 l/min
- Temperature (min / max)
- 1°C (34°F) / 35°C (95°F)
- Rs485
- Standard
- Supply voltage
- 100-240Vac (±10%) 50/60 Hz
- Connection type
- IEC320-C14
- Nominal power (max)
- 240 W500 W
- Fuse rating (5x20mm)
- 4A (250VAC -T)6.3A (250VAC – T)
- Dimensions (w x d x h)
- 27 x 44 x 28 cm27 x 44 x 41cm
- Net weight
- < 28 kg< 40 kg
- Outlet port
- 1/8″ female BSPP
- Inlet port
- 1/8″ female BSPP
- Water purge
- Threaded ISO M5 female
- Temperature
- 5-35°C (41-95°F)
- Humidity (max, non condensing)
- 80% [5-35°C (41-95°F)]
- Noise
- < 35dB(A)
- Ip rating
- IP20
- 产品编号
- 59850103
描述
The AirGen series ZA-TOTAL is able to remove the total hydrocarbons to less than 0.05 ppm from the external compressed Air. It is also able to remove other pollutant like Humidity, CO2, CO, NOx, SO2 and Hydrocarbons. Very small in size, the ZA-TOTAL can filter up to 30 L/min of compressed Air and can withstand a pressure up to 8 bar (115 PSI). The reduction of hydrocarbons, including methane, and carbon monoxide decrease the background noise level and gives much better baseline stability, considerably increasing detector sensitivity and ensuring precise analytical results. The hydrocarbons and CO are removed with a catalytic oven filled with palladium, the Humidity and CO2 is removed with a dual molecular sieve PSA system, NO is removed with Purafil and other components are removed with an active charcoal filter.Stackable with HG PRO/ HG BASIC
