新 H2 POWER 10L 在 米兰, 伦巴第, 意大利
新
Doubleclick to zoom in
请联系卖家咨询
更多照片和设备细节。
规格参数
- 新旧状况
- 新
- Electrolytic cell
- PEM technology (No acid or alkaline solutions are used)
- H2 purity
- >99.99999%. Referred to O2, DewPoint < -75°C
- Outlet pressure (max)
- 12Bar (optional 16 Bar)
- H2 flow rate (max)
- 1 Nm3/h (3 x 3300cc/min)
- Drying system
- Maintenance-free
- Touch-screen lcd 128×64 pixel
- Standard
- Internal h2 sensor
- Optional
- Cell voltage control
- Standard
- H2 outlet port
- 1/8” compression tube fitting
- Water inlet port
- 1/4” tube, quick release push to lock fitting
- Quality
- Deionized, ASTM II, <0.1uS
- Generator internal tank capacity
- 3.3 l (3 x 1.1 l)
- External tank capacity (for refilling)
- 10 l
- Consumption rate
- 1l/hour
- Power supply connection type
- 3 x wires 4mm3 (2 wire+ground)
- Power supply voltage
- Single phase 230VAC, 50/60 Hz
- Power supply current (max)
- 30A
- Energy required
- 5.8kWh/Nm3 (end life 6.7kWh/Nm3)
- Operating temperature
- 5-35°C (41-95°F)
- Storage temperature
- 1-40°C (33.8-104°F)
- Operating humidity (non-condensing)
- 80% at 25°C (77°F)
- Ingress protection rating
- IP20
- Pollution degree rating
- 2 (with no aromatic compounds)
- Cabinet ventilation
- 2 x 135 Nm3/h controlled with thermostat
- Dimensions (w * h * d)
- 59 * 164 * 81 cm
- Net weight (water tanks empty)
- <180kg
- Altitude
- <2000m
- Certifications
- CE, ISO9001
- 产品编号
- 59850072
描述

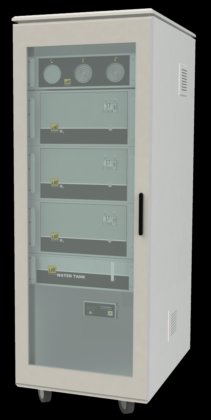

H2 POWER 10L is a system able to provide up to 1Nm3/h of hydrogen.

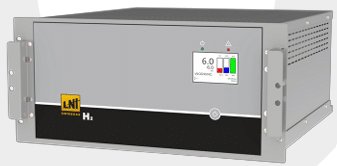

The hydrogen is produced from three Hydrogen Generators “6920.16.330” connected in parallel mode.
6920.16.330 uses an electrolytic cell with polymeric membrane (PEM) to produce pure hydrogen from distilled water. No acid or alkaline solutions are used.
It is provided with an internal 1.1 litres tank with electronic level control and an automatic fill function “Autorefill” from an external source.
Its innovative gas drying system is completely maintenance-free and allows continuous operation, 24 hours a day. The exclusive, electronically-controlled, gas/liquid separator automatic checks for internal leaks whenever starting the unit, and a constant control of operating parameters guarantees maximum safety.
The touch-screen LCD interface provides a direct simple control and management of all functions on the unit.
The RS232 and LAN ports allow a remote control of the system from anywhere in the world.
