新 HG RACK 2U PRO 在 米兰, 伦巴第, 意大利
新
规格参数
- 新旧状况
- 新
- Models hg 2u pro
- 100160250350600
- Electrolytic cell
- PEM technology
- Drying system
- PSA (Pressure Swing Adsorption)
- H2 purity (1)
- >99.99999%
- Outlet pressure
- 12 bar (174 psi) / 16 bar (232 psi) (optional)
- H2 flow-rate cc/min (max)
- 100160250350600
- Dimensions
- Standard 19 inch 2U RACK (51 cm deep)
- Net weight (no water in tank)
- 16.5 kg
- Rs485/usb
- Standard
- Lan
- Optional
- Parallel mode
- Ready on board
- Automatic tank refill
- Standard
- Quality
- Deionized, ASTM II, <0.1uS
- Supply pressure (min, max)
- 0 bar (0 psi), 0.5 bar (7.25 psi)
- Internal tank capacity
- 0.3 l
- Type of connection
- IEC 320-C14
- Power supply voltage
- 1~ 100-240 Vac (±10%) 50/60 Hz
- Nominal power (max)
- 320W500W
- Fuse rating (5x 20 mm)
- 4A (250VAC – T)6.3A (250VAC – T)
- Hydrogen outlet
- Double ferrule compression fitting, tube 1/8”
- Water (inlet, drain)
- Quick release push-in fitting
- Vent
- 1/8” BSPP female
- 产品编号
- 59850069
描述

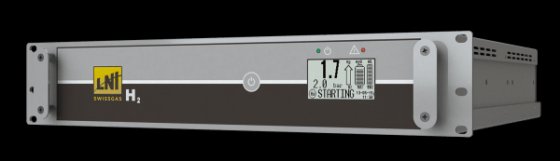

The HydroGen series HG RACK 19“ 2U PRO is able to generate up to 600cc/min Hydrogen with purity better than 99.99999% and pressure up to 16 bar (232 PSI).
The HG RACK 19 inch 2U PRO includes an electrolytic cell with polymeric membrane (PEM) using distilled water. The two-column PSA drying system with automatic regeneration ensures the maximum grade of hydrogen purity, and is completely maintenance-free.
The HG RACK 19 inch 2U PRO is the ideal Hydrogen for all GC-FID detectors. The on-board CPU constantly control the operating parameters to guarantee full safety.
Up to 20 units can be connected in parallel mode using an external control box. The touch-screen LCD interface provides simple and user-friendly management of all functions on the unit.
